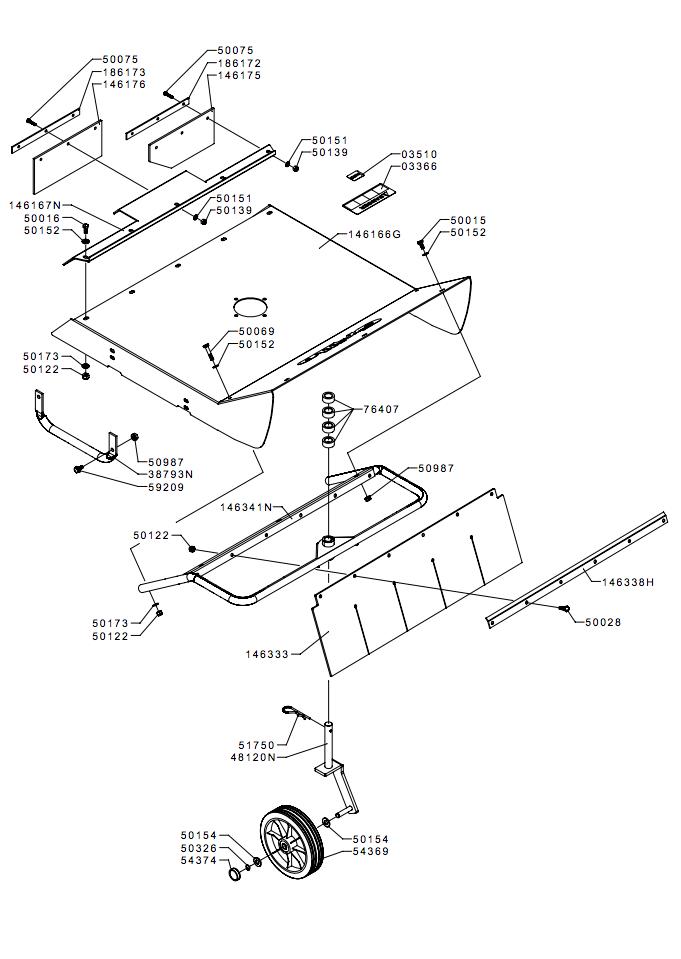

GRASS CUTTER COMPACT - COVER & WHEEL(from s/n 228001 from 1996)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0336603366STICKER£3.28 Add to
146166G146166GGRASS CONVEYOR£343.05 Add to
146167N146167NGUARD£40.90 Add to
146175146175GUARD£9.03 Add to
146176146176GUARD£9.97 Add to
146333146333GUARD£39.99 Add to
146338H146338HBRACKET£13.57 Add to
146341N146341NPIPE£90.08 Add to
186172186172BRACKET£3.77 Add to
186173186173BRACKET£3.77 Add to
38793N38793NSKID PLATE£34.85 Add to
48120N48120NYOKE£35.32 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5006950069SCREW£1.59 Add to
5007550075SCREW£1.42 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017350173WASHER£1.34 Add to
5032650326CIRCLIP£1.37 Add to
5098750987NUT£2.72 Add to
5175051750SPLIT PIN£1.89 Add to
5436954369WHEEL£22.82 Add to
5437454374GUARD£1.47 Add to
5920959209SCREW£1.49 Add to
7640776407SPACER£3.57 Add to
