HANDLE(from s/n 228001 to s/n 322277 from 1996 to 2005)

Parts list

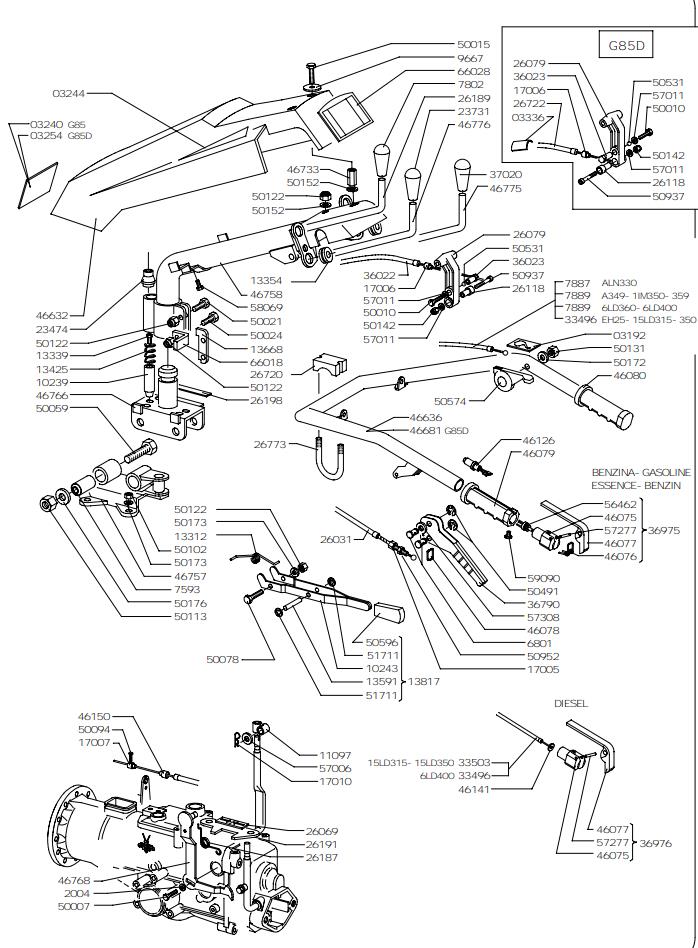

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0319203192STICKER£3.12 Add to
0324003240STICKER£4.79 Add to
0324403244STICKER£4.12 Add to
0325403254STICKER£4.12 Add to
1024310243LEVER£18.62 Add to
1109711097GEARBOX ARTICULATION£3.34 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
1335413354RING£3.28 Add to
1342513425SPRING£4.47 Add to
1359113591PIN£3.57 Add to
1366813668SMALL PLATE£5.34 Add to
1381713817HANDLE£22.88 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
1700717007CLAMP£2.61 Add to
1701017010SPLIT PIN£1.99 Add to
186351186351KNOB£4.51 Add to
196689196689REVERSE GEAR CONTROL ROD£30.42 Add to
20042004WASHER£3.69 Add to
2347423474BUSHING£9.30 Add to
2373123731KNOB£3.67 Add to
2603126031WIRE£10.58 Add to
2606926069STICKER£2.51 Add to
2607926079HANDLE£5.80 Add to
2611826118BUSHING£2.91 Add to
2618726187LEVER SPRING£3.69 Add to
2619126191SMALL PLATE£7.36 Add to
2619826198STICKER£5.25 Add to
2672026720SUPPORT£3.64 Add to
2672226722WIRE£9.53 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
3349633496WIRE£7.16 Add to
3350333503WIRE£9.82 Add to
3602236022WIRE£7.52 Add to
3602336023CONNECTION£5.46 Add to
3679036790HANDLE£14.60 Add to
3697536975SUPPORT£33.83 Add to
3697636976SUPPORT£27.56 Add to
3702037020KNOB£3.93 Add to
4607546075SUPPORT£10.58 Add to
4607646076LEVER SPRING£4.54 Add to
4607746077MOTOR STOP LEVER£8.16 Add to
4607846078HANDLE LOCK DEVICE£3.55 Add to
4608046080HANDLE£6.44 Add to
4612646126WIRE£9.99 Add to
4614146141STICKER PLATE£3.89 Add to
4615046150BUSHING£3.04 Add to
4663646636HANDLEBAR£113.22 Add to
4673346733EXTENSION£4.03 Add to
4676846768LEVER£36.88 Add to
4677546775ROD£16.76 Add to
4677646776ROD£18.28 Add to
5000750007SCREW£1.50 Add to
5001050010SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5005950059SCREW£3.23 Add to
5007850078SCREW£1.69 Add to
5009450094SCREW£1.40 Add to
5010250102NUT£1.36 Add to
5011350113NUT£1.71 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5014250142NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017650176WASHER£1.60 Add to
5049150491RING SNAP£1.44 Add to
5053150531BALL£1.49 Add to
5057450574ACCELERATOR CONTROL LEVER£8.74 Add to
5093750937SCREW£1.52 Add to
5095250952NUT£1.36 Add to
5171151711RING£1.44 Add to
5646256462SWITCH£11.06 Add to
5700657006WASHER£1.36 Add to
5701157011WASHER£1.30 Add to
5727757277PIN£1.61 Add to
5730857308BELLEVILLE SPRING£1.61 Add to
5806958069SCREW£1.36 Add to
5909059090SCREW£1.32 Add to
6601866018GEAR HINDERING BRACKET£4.79 Add to
6602866028STICKER£14.15 Add to
68016801CONNECTION£9.59 Add to
75937593SILENTBLOC£22.02 Add to
78027802KNOB£4.62 Add to
78877887WIRE£8.54 Add to
78897889WIRE£8.54 Add to
96679667WASHER£2.29 Add to
