HANDLE UNTIL S/N 545067(from s/n 102801 to s/n 545067 from 1984 to 2011)

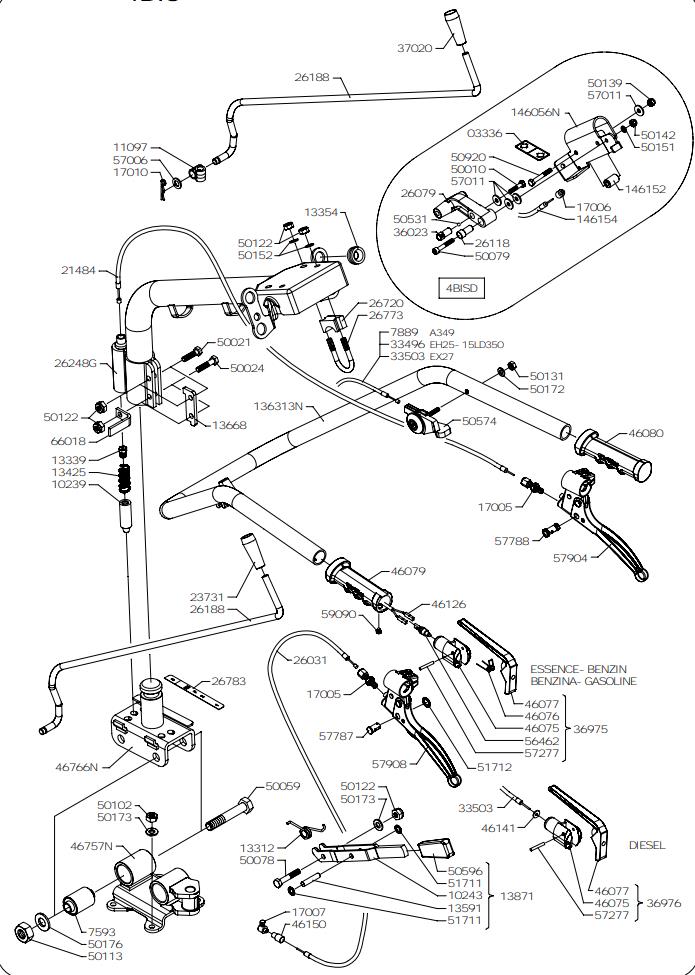

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1024310243LEVER£18.62 Add to
1109711097GEARBOX ARTICULATION£3.34 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
1335413354RING£3.28 Add to
1342513425SPRING£4.47 Add to
1359113591PIN£3.57 Add to
136313N136313NHANDLEBAR£85.65 Add to
1366813668SMALL PLATE£5.34 Add to
146056N146056NDIFF. BLOCK LEVER SUPPORT£13.91 Add to
146152146152SPACER£5.10 Add to
146154146154WIRE£9.97 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
1700717007CLAMP£2.61 Add to
1701017010SPLIT PIN£1.99 Add to
186351186351KNOB£4.51 Add to
2148421484WIRE£14.89 Add to
2373123731KNOB£3.67 Add to
2603126031WIRE£10.58 Add to
2607926079HANDLE£5.80 Add to
2611826118BUSHING£2.91 Add to
2618826188CONTROL ROD£18.04 Add to
26248G26248GSTEERING COLUMN£143.59 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
2678326783STICKER£6.29 Add to
3349633496WIRE£7.16 Add to
3350333503WIRE£9.82 Add to
3602336023CONNECTION£5.46 Add to
3697536975SUPPORT£33.83 Add to
3697636976SUPPORT£27.56 Add to
3702037020KNOB£3.93 Add to
4607546075SUPPORT£10.58 Add to
4607646076LEVER SPRING£4.54 Add to
4607746077MOTOR STOP LEVER£8.16 Add to
4607946079HANDLE£5.10 Add to
4608046080HANDLE£6.44 Add to
4612646126WIRE£9.99 Add to
4614146141STICKER PLATE£3.89 Add to
4615046150BUSHING£3.04 Add to
46757N46757NSUPPORT£64.59 Add to
46766N46766NSUPPORT£51.43 Add to
5001050010SCREW£1.42 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5005950059SCREW£3.23 Add to
5007850078SCREW£1.69 Add to
5007950079SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5011350113NUT£1.71 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5013950139NUT£1.34 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017650176WASHER£1.60 Add to
5053150531BALL£1.49 Add to
5057450574ACCELERATOR CONTROL LEVER£8.74 Add to
5092050920SCREW£1.45 Add to
5171151711RING£1.44 Add to
5171251712RING£1.49 Add to
5646256462SWITCH£11.06 Add to
5700657006WASHER£1.36 Add to
5701157011WASHER£1.30 Add to
5727757277PIN£1.61 Add to
5778757787CYLINDER£3.39 Add to
5778857788CLAMP£3.39 Add to
5790457904LEVER£41.00 Add to
5790857908LEVER£27.12 Add to
5909059090SCREW£1.32 Add to
6601866018GEAR HINDERING BRACKET£4.79 Add to
75937593SILENTBLOC£22.02 Add to
78897889WIRE£8.54 Add to
