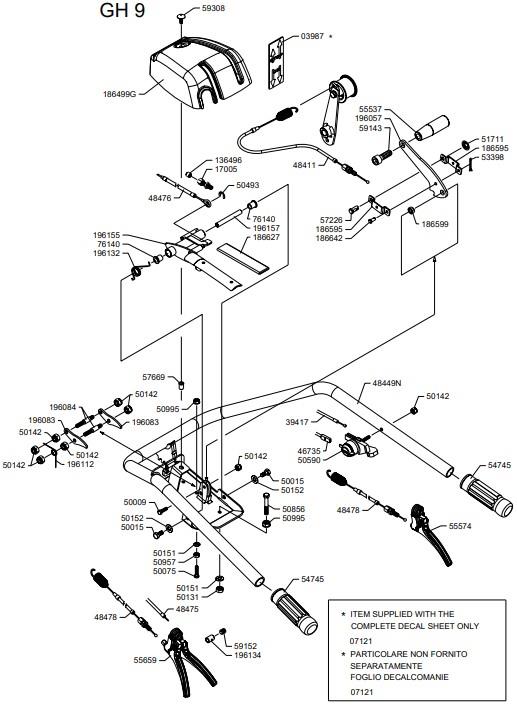

HANDLEBAR AND LEVERS (from sn 709077 from 2021)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0712107121STICKER£20.41 Add to
136496136496BOOT£2.53 Add to
1700517005ADJUSTER£5.27 Add to
186499G186499GDASHBOARD£68.09 Add to
186595186595BRACKET£4.50 Add to
186599186599SPACER£4.64 Add to
186627186627HANDLE£7.16 Add to
186642186642PIN£3.05 Add to
196057196057LEVER£7.51 Add to
196083196083BRACKET£2.29 Add to
196084196084STUD£3.18 Add to
196112196112SPRING£5.20 Add to
196132196132SPRING£5.20 Add to
196134196134CLAMP£1.74 Add to
196155196155LEFT FEED BAR£42.24 Add to
196157196157PIPE£8.52 Add to
3941739417CABLE£5.99 Add to
4673546735WIRE£10.31 Add to
4841148411BRAKES CABLE£26.02 Add to
48449N48449NHANDLEBAR£164.68 Add to
4847548475WIRE£7.80 Add to
4847648476WIRE£8.67 Add to
4847848478BRAKES CABLE£25.14 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5007550075SCREW£1.42 Add to
5013150131NUT£1.32 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5049350493RING SNAP£1.30 Add to
5059050590ACCELERATOR CONTROL LEVER£24.66 Add to
5085650856SCREW£1.42 Add to
5095750957NUT£1.34 Add to
5099550995NUT£1.32 Add to
5171151711RING£1.44 Add to
5339853398SPLIT PIN£1.34 Add to
5474554745HANDLE£5.77 Add to
5553755537KNOB£5.01 Add to
5557455574LEVER£15.88 Add to
5565955659LEVER£38.14 Add to
5722657226CYLINDER£3.89 Add to
5766957669THREADED INSERT£1.64 Add to
5914359143SCREW£0.72 Add to
5915259152ALLEN SCREW£1.42 Add to
5930859308SCREW£1.92 Add to
7614076140NYLON BUSHING£6.83 Add to
