HANDLEBAR COLUMN AND LEVERS (from sn 666659 to sn 712482 from 2018 to 2021)

Parts list

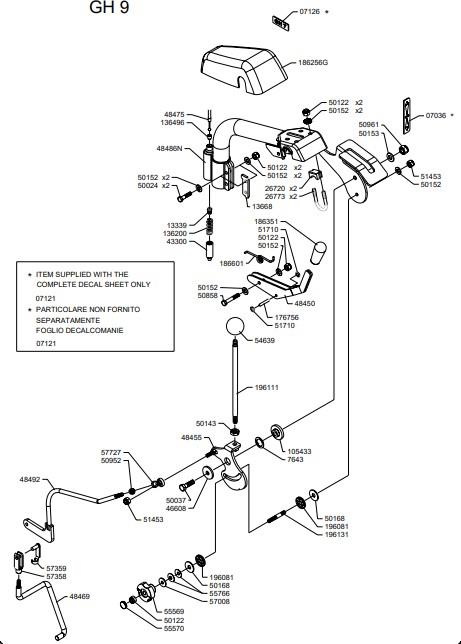

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0712107121STICKER£20.41 Add to
105433105433BUSHING£4.69 Add to
1333913339PIN£2.87 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
176756176756PIN£3.23 Add to
186256G186256GGUARD£38.14 Add to
186351186351KNOB£4.51 Add to
186601186601SPRING£16.12 Add to
196081196081RING£10.91 Add to
196111196111RH FORWARD LEVER ROD£10.50 Add to
196131196131STUD£7.64 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
4330043300ROD£5.23 Add to
4660846608WASHER£3.44 Add to
4845048450LEVER FOR HANDLEBAR ADJUSTMENT£20.80 Add to
4845548455FLANGE£19.08 Add to
4846948469HOPPER FRAME TUBE,REAR£52.45 Add to
4847548475WIRE£7.80 Add to
48486N48486NSTEERING COLUMN£96.33 Add to
5002450024SCREW£1.46 Add to
5003750037SCREW£1.76 Add to
5012250122NUT£1.44 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5016850168WASHER£1.45 Add to
5085850858SCREW£1.71 Add to
5095250952NUT£1.36 Add to
5096150961NUT£1.61 Add to
5145351453NUT£1.36 Add to
5171051710RING£1.44 Add to
5463954639BALL£6.60 Add to
5556955569HANDWHEEL£3.47 Add to
5557055570PLUG£1.05 Add to
5576655766BELLEVILLE SPRING£0.87 Add to
5700857008WASHER£1.35 Add to
5735857358YOKE£6.63 Add to
5735957359CLIP£3.45 Add to
5772757727CYLINDER HEAD£23.47 Add to
76437643SPACER£2.71 Add to
