HANDLEBAR (from sn 565750 to sn 591341 from 2013 to 2015)

Parts list

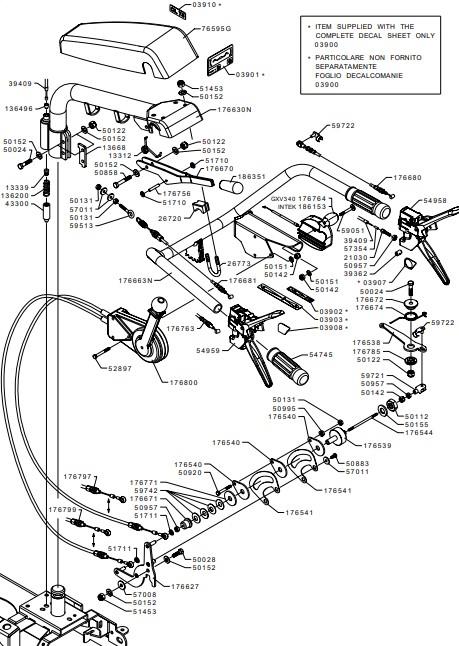

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
176539176539PIN£16.88 Add to
176540176540DISK£16.62 Add to
176541176541CLUTCH DISC PLATE CL75£9.05 Add to
176671176671BUSHING£21.11 Add to
176674176674SPRING£9.53 Add to
176680176680WIRE£78.55 Add to
176681176681WIRE£67.46 Add to
176756176756PIN£3.23 Add to
176763176763DIFF LOCK CABLE£28.21 Add to
176797176797ACCELERATOR CONTROL LEVER£42.36 Add to
176799176799ACCELERATOR CONTROL LEVER£42.36 Add to
176800176800ACCELERATOR CONTROL LEVER£156.61 Add to
186153186153ACCELERATOR CONTROL LEVER£37.12 Add to
186351186351KNOB£4.51 Add to
2103021030ADJUSTER£3.67 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
3940939409WIRE£8.19 Add to
4330043300ROD£5.23 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5011250112NUT£1.71 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015550155WASHER£1.42 Add to
5085850858SCREW£1.71 Add to
5088350883SCREW£1.44 Add to
5092050920SCREW£1.45 Add to
5095750957NUT£1.34 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5171051710RING£1.44 Add to
5171151711RING£1.44 Add to
5289752897SCREW£1.37 Add to
5474554745HANDLE£5.77 Add to
5495854958RIGHT START LEVER£29.23 Add to
5495954959LEFT START LEVER£50.16 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5735457354BOOT£1.60 Add to
5905159051SCREW£0.62 Add to
5951359513ROD£3.81 Add to
5972159721YOKE£2.38 Add to
5972259722CLIP£1.39 Add to
5974259742BELLEVILLE SPRING£1.58 Add to
76595G76595GGUARD£24.26 Add to
