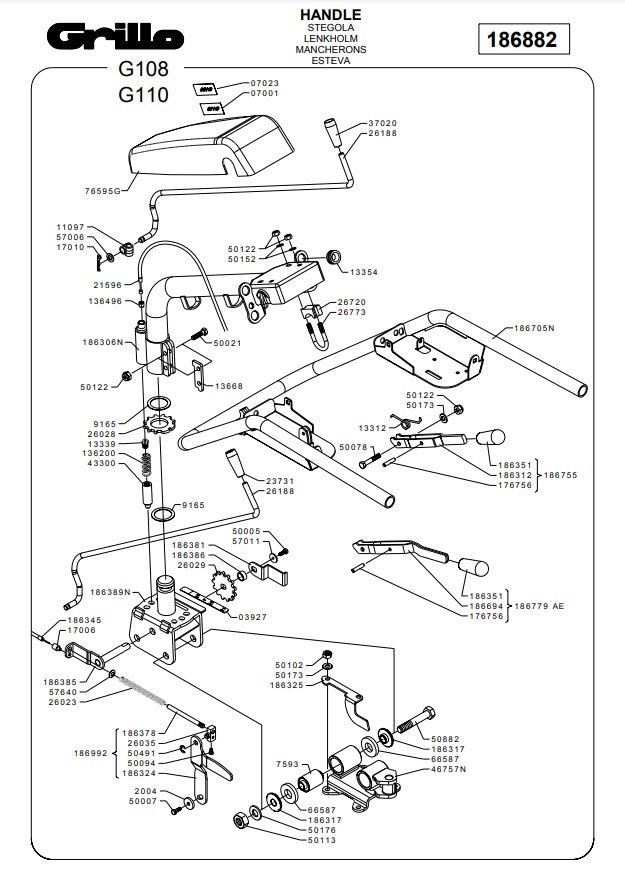

HANDLEBAR ( from sn 585297 from 2014)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0392703927STICKER£2.75 Add to
0700107001STICKER£2.61 Add to
1109711097GEARBOX ARTICULATION£3.34 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
1335413354RING£3.28 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
1700617006BUSHING£51.96 Add to
1701017010SPLIT PIN£1.99 Add to
176756176756PIN£3.23 Add to
186306N186306NSTEERING COLUMN£113.90 Add to
186312186312LEVER£19.85 Add to
186317186317BUSHING£8.00 Add to
186324186324LEVER£15.51 Add to
186325186325SMALL PLATE£6.85 Add to
186351186351KNOB£4.51 Add to
186378186378ROD£11.58 Add to
186381186381SMALL PLATE£7.55 Add to
186385186385LEVER£23.45 Add to
186386186386SPACER£7.19 Add to
186389N186389NSUPPORT£84.91 Add to
186705N186705NHANDLEBAR£141.69 Add to
186755186755HANDLE£25.21 Add to
186779186779HANDLE£39.70 Add to
186992186992LEVER£42.79 Add to
20042004WASHER£3.69 Add to
2159621596WIRE£8.81 Add to
2373123731KNOB£3.67 Add to
2602326023SPRING£2.97 Add to
2602826028GEAR£8.25 Add to
2602926029GEAR£8.25 Add to
2603526035ARTICULATION£18.72 Add to
2618826188CONTROL ROD£18.04 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
3702037020KNOB£3.93 Add to
4330043300ROD£5.23 Add to
46757N46757NSUPPORT£64.59 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000750007SCREW£1.50 Add to
5002150021SCREW£1.46 Add to
5007850078SCREW£1.69 Add to
5009450094SCREW£1.40 Add to
5010250102NUT£1.36 Add to
5011350113NUT£1.71 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017650176WASHER£1.60 Add to
5049150491RING SNAP£1.44 Add to
5088250882SCREW£3.91 Add to
5700657006WASHER£1.36 Add to
5701157011WASHER£1.30 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
6658766587RUBBER WASHER£5.10 Add to
75937593SILENTBLOC£22.02 Add to
76595G76595GGUARD£24.26 Add to
91659165SPACER£3.41 Add to
