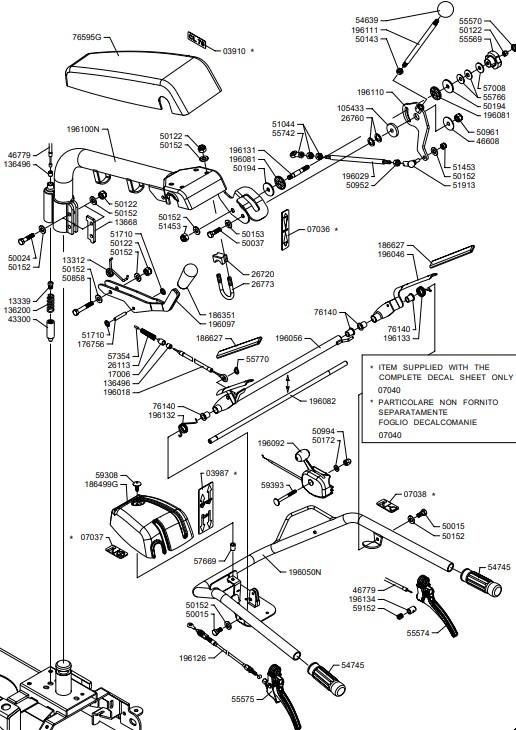

HANDLEBAR (from sn 600252 to sn 608213 from 2015 to 2016)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0704007040STICKER£25.45 Add to
105433105433BUSHING£4.69 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
1700617006BUSHING£51.96 Add to
176756176756PIN£3.23 Add to
186351186351KNOB£4.51 Add to
186499G186499GDASHBOARD£68.09 Add to
186627186627HANDLE£7.16 Add to
196018196018WIRE£12.63 Add to
196029196029LEVER£21.07 Add to
196046196046RIGHT FEED BAR£26.98 Add to
196056196056LEFT FEED BAR£94.54 Add to
196081196081RING£10.91 Add to
196082196082PIPE£21.00 Add to
196092196092ACCELERATOR CONTROL LEVER£27.91 Add to
196100N196100NSTEERING COLUMN£145.16 Add to
196110196110LEVER£18.75 Add to
196111196111RH FORWARD LEVER ROD£10.50 Add to
196126196126WIRE£26.25 Add to
196131196131STUD£7.64 Add to
196132196132SPRING£5.20 Add to
196134196134CLAMP£1.74 Add to
2611326113SPRING£3.64 Add to
2672026720SUPPORT£3.64 Add to
2676026760SPACER£2.87 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
4330043300ROD£5.23 Add to
4660846608WASHER£3.44 Add to
4677946779WIRE£8.14 Add to
5001550015SCREW£1.44 Add to
5002450024SCREW£1.46 Add to
5003750037SCREW£1.76 Add to
5012250122NUT£1.44 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017250172WASHER£1.30 Add to
5019450194WASHER£1.60 Add to
5085850858SCREW£1.71 Add to
5095250952NUT£1.36 Add to
5096150961NUT£1.61 Add to
5099450994NUT£1.45 Add to
5104451044NUT£2.54 Add to
5145351453NUT£1.36 Add to
5171051710RING£1.44 Add to
5191351913ARTICULATION£11.23 Add to
5463954639BALL£6.60 Add to
5474554745HANDLE£5.77 Add to
5556955569HANDWHEEL£3.47 Add to
5557055570PLUG£1.05 Add to
5557455574LEVER£15.88 Add to
5557555575LEVER£18.95 Add to
5574255742CYLINDER HEAD£9.70 Add to
5576655766BELLEVILLE SPRING£0.87 Add to
5577055770CIRCLIP£0.23 Add to
5700857008WASHER£1.35 Add to
5735457354BOOT£1.60 Add to
5766957669THREADED INSERT£1.64 Add to
5915259152ALLEN SCREW£1.42 Add to
5930859308SCREW£1.92 Add to
5939359393SCREW£0.53 Add to
7614076140NYLON BUSHING£6.83 Add to
76595G76595GGUARD£24.26 Add to
