HANDLEBAR (from sn 631514 to sn 673747 from 2017 to 2019)

Parts list

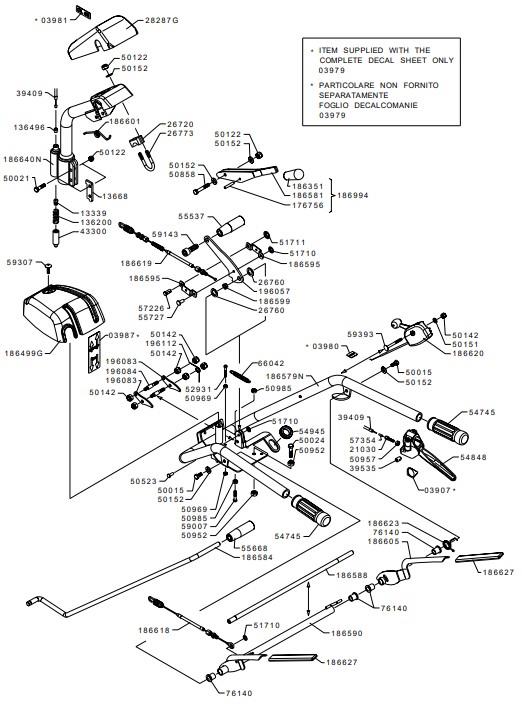

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0397903979STICKER£21.51 Add to
1333913339PIN£2.87 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
176756176756PIN£3.23 Add to
186351186351KNOB£4.51 Add to
186499G186499GDASHBOARD£68.09 Add to
186579N186579NHANDLEBAR£218.08 Add to
186581186581LEVER FOR HANDLEBAR ADJUSTMENT£19.38 Add to
186584186584ROD£42.98 Add to
186590186590LEVER£58.24 Add to
186595186595BRACKET£4.50 Add to
186601186601SPRING£16.12 Add to
186618186618WIRE£25.06 Add to
186619186619WIRE£32.24 Add to
186623186623SPRING£10.75 Add to
186627186627HANDLE£7.16 Add to
186640N186640NSTEERING COLUMN£78.04 Add to
186994186994HANDLE£26.86 Add to
196083196083BRACKET£2.29 Add to
196084196084STUD£3.18 Add to
196112196112SPRING£5.20 Add to
2103021030ADJUSTER£3.67 Add to
2672026720SUPPORT£3.64 Add to
2676026760SPACER£2.87 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
28287G28287GGUARD£28.80 Add to
3940939409WIRE£8.19 Add to
3953539535CLAMP£3.23 Add to
4330043300ROD£5.23 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5052350523RIVET£0.23 Add to
5085850858SCREW£1.71 Add to
5095250952NUT£1.36 Add to
5095750957NUT£1.34 Add to
5096950969NUT£1.30 Add to
5098550985NUT£1.30 Add to
5171051710RING£1.44 Add to
5293152931SCREW£1.44 Add to
5474554745HANDLE£5.77 Add to
5484854848LEVER CL62M PLUS 2MTRS 4MM RECOIL ROPE£15.49 Add to
5494554945CABLE CHOCK£1.81 Add to
5566855668KNOB£4.02 Add to
5572755727RIVET£0.42 Add to
5722657226CYLINDER£3.89 Add to
5735457354BOOT£1.60 Add to
5900759007SCREW£1.40 Add to
5930759307SCREW£2.41 Add to
5939359393SCREW£0.53 Add to
6604266042SPRING£8.52 Add to
7614076140NYLON BUSHING£6.83 Add to
