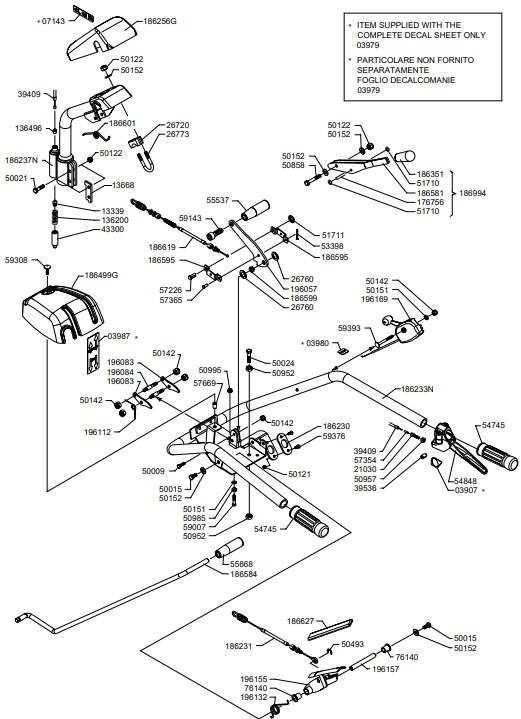

HANDLEBAR (from sn 669134 from 2018)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0397903979STICKER£21.51 Add to
1333913339PIN£2.87 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
176756176756PIN£3.23 Add to
186230186230GUIDE£11.62 Add to
186231186231WIRE£22.54 Add to
186256G186256GGUARD£38.14 Add to
186351186351KNOB£4.51 Add to
186499G186499GDASHBOARD£68.09 Add to
186581186581LEVER FOR HANDLEBAR ADJUSTMENT£19.38 Add to
186584186584ROD£42.98 Add to
186595186595BRACKET£4.50 Add to
186599186599SPACER£4.64 Add to
186601186601SPRING£16.12 Add to
186619186619WIRE£32.24 Add to
186627186627HANDLE£7.16 Add to
186994186994HANDLE£26.86 Add to
196057196057LEVER£7.51 Add to
196083196083BRACKET£2.29 Add to
196084196084STUD£3.18 Add to
196112196112SPRING£5.20 Add to
196132196132SPRING£5.20 Add to
196155196155LEFT FEED BAR£42.24 Add to
196157196157PIPE£8.52 Add to
196169196169ACCELERATOR CONTROL LEVER£33.01 Add to
2103021030ADJUSTER£3.67 Add to
2672026720SUPPORT£3.64 Add to
2676026760SPACER£2.87 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
3940939409WIRE£8.19 Add to
3953639536CLAMP£1.40 Add to
4330043300ROD£5.23 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5012150121NUT£1.36 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5049350493RING SNAP£1.30 Add to
5085850858SCREW£1.71 Add to
5095250952NUT£1.36 Add to
5095750957NUT£1.34 Add to
5098550985NUT£1.30 Add to
5099550995NUT£1.32 Add to
5171051710RING£1.44 Add to
5171151711RING£1.44 Add to
5339853398SPLIT PIN£1.34 Add to
5474554745HANDLE£5.77 Add to
5484854848LEVER CL62M PLUS 2MTRS 4MM RECOIL ROPE£15.49 Add to
5553755537KNOB£5.01 Add to
5566855668KNOB£4.02 Add to
5722657226CYLINDER£3.89 Add to
5735457354BOOT£1.60 Add to
5736557365PIN£3.06 Add to
5766957669THREADED INSERT£1.64 Add to
5900759007SCREW£1.40 Add to
5914359143SCREW£0.72 Add to
5930859308SCREW£1.92 Add to
5937659376SCREW£1.49 Add to
5939359393SCREW£0.53 Add to
7614076140NYLON BUSHING£6.83 Add to
