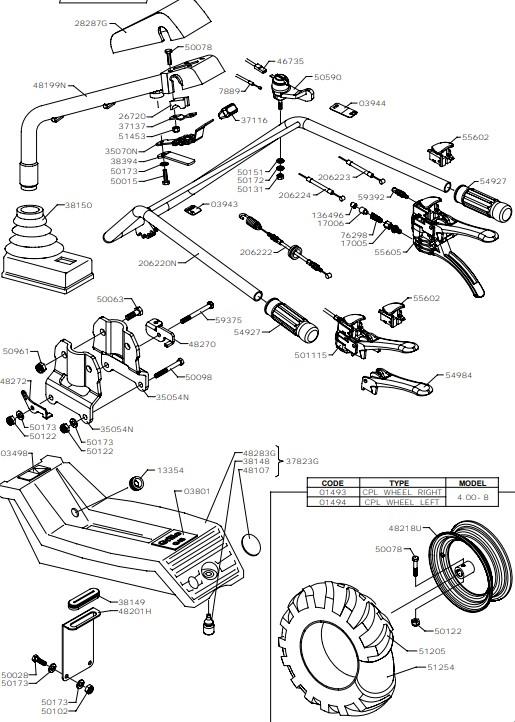

HANDLEBAR (from sn 707706 from 2021)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0149301493RUBBER WHEEL RH£147.80 Add to
0149401494RUBBER WHEEL LH£147.80 Add to
0349803498STICKER£4.07 Add to
0394303943STICKER£1.03 Add to
0394403944STICKER£1.74 Add to
1335413354RING£3.28 Add to
136496136496BOOT£2.53 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
206220N206220NHANDLEBAR£81.13 Add to
206222206222WIRE£26.68 Add to
206223206223WIRE£9.18 Add to
206224206224WIRE£9.18 Add to
2672026720SUPPORT£3.64 Add to
28287G28287GGUARD£28.80 Add to
35054N35054NSLEEVE£21.68 Add to
35070N35070NLEVER£22.66 Add to
3711637116KNOB£5.54 Add to
3713737137SMALL PLATE£5.54 Add to
37823G37823GFAIRING£58.02 Add to
3814838148BUFFER, HOOD COUPLING£7.43 Add to
3814938149BUFFER, HOOD COUPLING£6.06 Add to
3815038150BELLOWS£13.02 Add to
3839438394RETAINER£6.39 Add to
4673546735WIRE£10.31 Add to
4810748107STICKER£3.43 Add to
48199N48199NSTEERING COLUMN£48.98 Add to
48201H48201HBRACKET£9.55 Add to
48218U48218URIM£70.48 Add to
4827048270BRACKET£8.52 Add to
4827248272BRACKET£5.16 Add to
48283G48283GFAIRING£50.58 Add to
5001550015SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5006350063SCREW£1.61 Add to
5007850078SCREW£1.69 Add to
5009850098SCREW£1.97 Add to
5010250102NUT£1.36 Add to
501115501115LEVER£38.92 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5059050590ACCELERATOR CONTROL LEVER£24.66 Add to
5096150961NUT£1.61 Add to
5120551205TYRE£43.48 Add to
5125451254INNERTUBE£14.11 Add to
5145351453NUT£1.36 Add to
5492754927HANDLE£4.96 Add to
5498454984LEVER£9.73 Add to
5560255602BUTTON£9.18 Add to
5560555605LEVER£37.08 Add to
5937559375SCREW£2.46 Add to
5939259392ADJUSTER£2.06 Add to
7629876298SPRING£3.81 Add to
78897889WIRE£8.54 Add to
