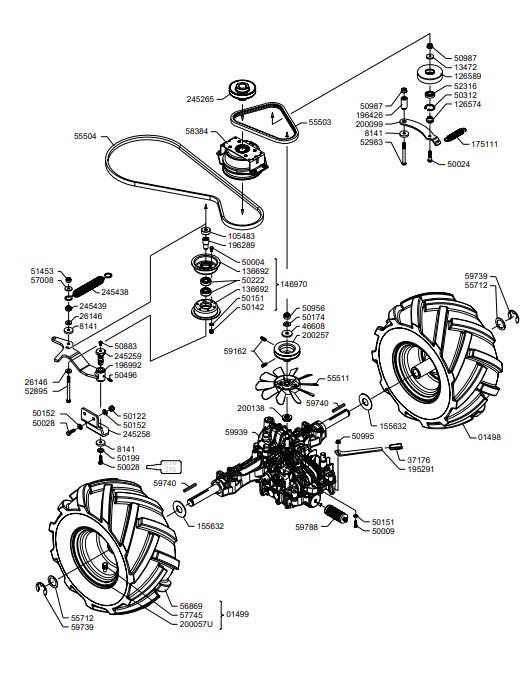

HYDR. AXLE AND TRANSMISSION (from sn 670355 to sn 677435 from 2018 to 2019)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0149801498RUBBER WHEEL£234.50 Add to
0149901499RUBBER WHEEL£234.50 Add to
105483105483SPACER£2.95 Add to
126574126574BUSHING£7.22 Add to
1347213472WASHER£3.19 Add to
146970146970GUIDE PULLEY£33.16 Add to
155632155632WASHER£4.44 Add to
155902155902GUIDE PULLEY£33.43 Add to
175111175111SPRING£12.86 Add to
195291195291LEVER£5.38 Add to
196289196289BUSHING£8.40 Add to
196426196426BUSHING£7.70 Add to
196992196992SUPPORT£53.75 Add to
200057U200057URIM£149.56 Add to
200099200099BRACKET£11.38 Add to
200138200138SPACER£7.50 Add to
200257200257PULLEY£91.63 Add to
245258245258SUPPORT£11.10 Add to
245259245259PIN£25.10 Add to
245265245265ENGINE PULLEY Ø 90,5£81.21 Add to
245438245438SPRING£21.19 Add to
245439245439BUSHING£5.59 Add to
2614626146WASHER£3.64 Add to
3717637176KNOB£3.79 Add to
4660846608WASHER£3.44 Add to
5000450004SCREW£1.36 Add to
5000950009SCREW£1.42 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017450174WASHER£1.50 Add to
5019950199WASHER£1.58 Add to
5022250222BEARING£8.85 Add to
5031250312CIRCLIP£1.71 Add to
5049650496FITTING£1.90 Add to
5088350883SCREW£1.44 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5231652316BEARING£8.54 Add to
5289552895SCREW£1.85 Add to
5298352983SCREW£2.22 Add to
5550355503BELT£40.67 Add to
5550455504BELT£91.52 Add to
5551155511BLOWER£19.96 Add to
5571255712SPACER£1.12 Add to
5686956869TYRE£158.36 Add to
5700857008WASHER£1.35 Add to
5774557745VALVE£3.73 Add to
5916259162ALLEN SCREW£1.64 Add to
5973959739RING SNAP£1.18 Add to
5974059740FEATHER KEY£3.12 Add to
5978859788OIL FILTER£119.96 Add to
5993959939HYDROST.TRANSMISSION K66AR£2,375.26 Add to
81418141WASHER£3.84 Add to
