  • HYDRAULIC EQUIPMENT(from s/n 344501 to s/n 344519 from 2005 to 2006)

HYDRAULIC EQUIPMENT(from s/n 344501 to s/n 344519 from 2005 to 2006)

Parts list

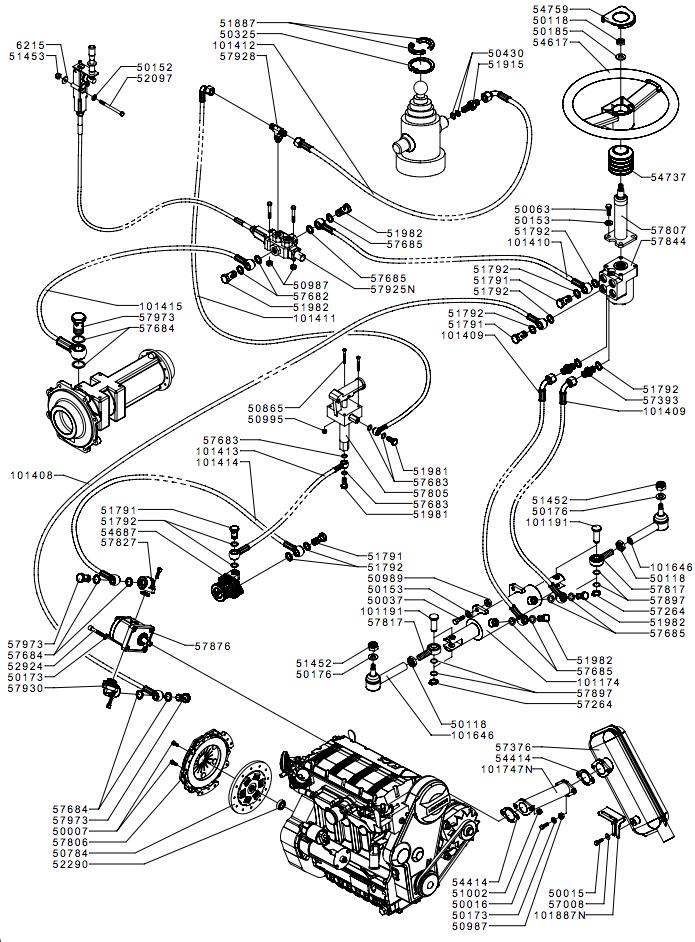

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101174101174JACK£1,509.56 Add to
101191101191PIN£19.14 Add to
101413101413HYDRAULIC HOSE£29.17 Add to
101646101646ARTICULATION£86.73 Add to
5000750007SCREW£1.50 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5003750037SCREW£1.76 Add to
5006350063SCREW£1.61 Add to
5011850118NUT£3.05 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5017650176WASHER£1.60 Add to
5018550185WASHER£1.56 Add to
5078450784CLUTCH PLATE£134.79 Add to
5086550865SCREW£1.59 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5099550865SCREW£1.59 Add to
5145251452NUT£2.53 Add to
5145351453NUT£1.36 Add to
5179251792WASHER£1.56 Add to
5188751887RING£17.93 Add to
5198151981HOLLON SCREW£4.45 Add to
5198251982HOLLON SCREW£5.36 Add to
5229052290BEARING£11.13 Add to
5292452924SCREW£1.81 Add to
5441454414GASKET£8.86 Add to
5461754617STEERING WHEEL£81.69 Add to
5468754687OIL FILTER£70.69 Add to
5473754737RUBBER BELLOW£24.26 Add to
5700857008WASHER£1.35 Add to
5737657376MUFFLER£225.07 Add to
5739357393JOINT£5.13 Add to
5768257682COVER£6.40 Add to
5768357683WASHER£1.47 Add to
5768457684WASHER£2.36 Add to
5768557685WASHER£1.71 Add to
5780657806PRESSURE PLATE£162.11 Add to
5780757807STEERING£139.14 Add to
5781757817BALL JOINT£40.55 Add to
5782757827BEARING£6.16 Add to
5787657876PUMP£350.52 Add to
5789757897SPACER£3.31 Add to
62156215WASHER£4.15 Add to
