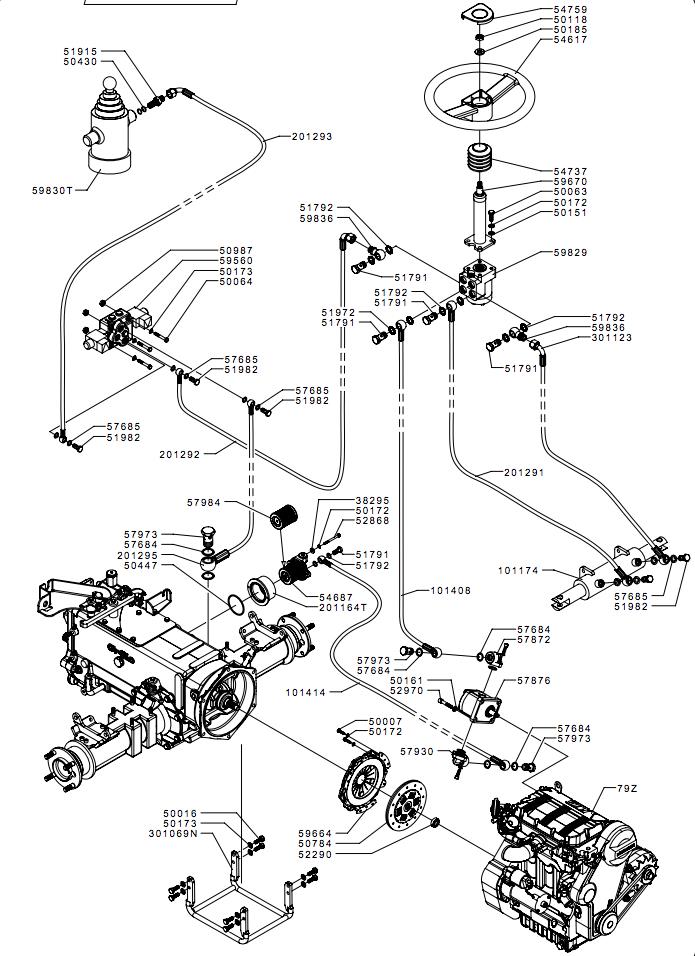

HYDRAULIC EQUIPMENT(from s/n 536678 from 2010)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101174101174JACK£1,509.56 Add to
201164T201164TFLANGE£80.15 Add to
301123301123HYDRAULIC HOSE£46.33 Add to
3829538295WASHER£3.43 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5006350063SCREW£1.61 Add to
5006450064SCREW£1.85 Add to
5011850118NUT£3.05 Add to
5015150151WASHER£1.28 Add to
5016150161WASHER£1.66 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5018550185WASHER£1.56 Add to
5044750447O-RING£2.46 Add to
5078450784CLUTCH PLATE£134.79 Add to
5098750987NUT£2.72 Add to
5179251792WASHER£1.56 Add to
5198251982HOLLON SCREW£5.36 Add to
5229052290BEARING£11.13 Add to
5286852868SCREW£1.89 Add to
5297052970SCREW£1.95 Add to
5461754617STEERING WHEEL£81.69 Add to
5468754687OIL FILTER£70.69 Add to
5473754737RUBBER BELLOW£24.26 Add to
5768457684WASHER£2.36 Add to
5768557685WASHER£1.71 Add to
5787257872FITTING£35.72 Add to
5787657876PUMP£350.52 Add to
5956059560DISTRIBUTOR£621.08 Add to
5966459664CLUTCH£194.71 Add to
5967059670EXTENSION£209.26 Add to
5982959829HYDRAULIC DRIVE£714.97 Add to
59830T59830TJACK£1,156.44 Add to
