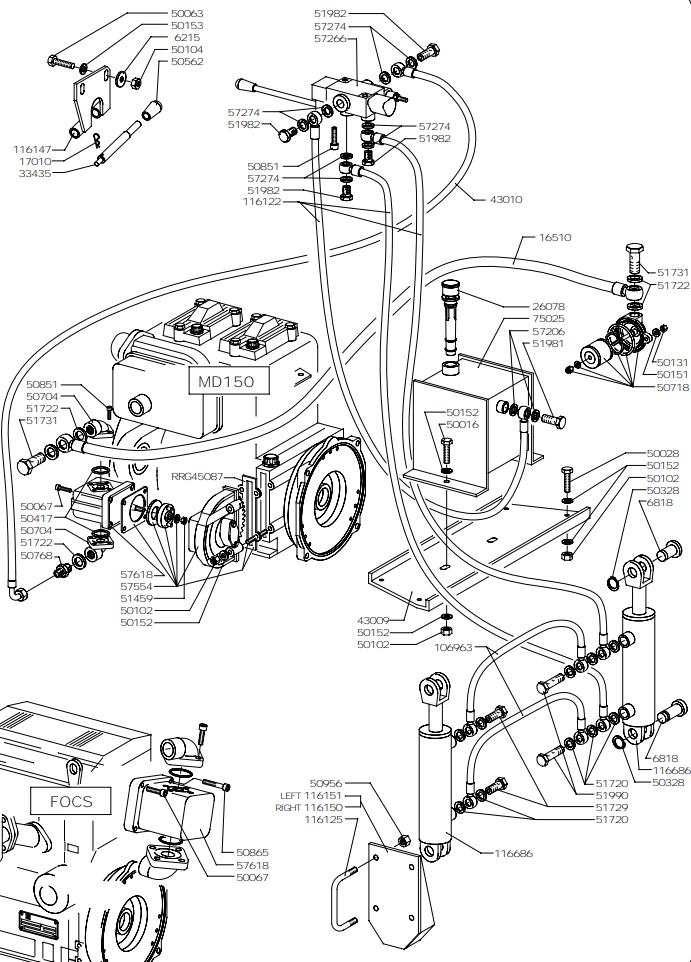

HYDRAULIC EQUIPMENT(from sn 129701 from 1986)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1701017010SPLIT PIN£1.99 Add to
2607826078LEVEL GAUGE£12.17 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5006350063SCREW£1.61 Add to
5006750067SCREW£1.45 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5013150131NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5032850328CIRCLIP£1.44 Add to
5041750417O-RING£1.59 Add to
5056250562KNOB£3.43 Add to
5071850718COVER£75.13 Add to
5076850768JOINT£4.20 Add to
5085150851SCREW£1.58 Add to
5086550865SCREW£1.59 Add to
5095650956NUT£1.47 Add to
5172051720WASHER£1.71 Add to
5172251722WASHER£1.76 Add to
5198151981HOLLON SCREW£4.45 Add to
5198251982HOLLON SCREW£5.36 Add to
5720657206WASHER£1.44 Add to
5726657266DISTRIBUTOR£233.31 Add to
5727457274WASHER£1.47 Add to
5761857618HYDRAULIC PUMP£233.73 Add to
62156215WASHER£4.15 Add to
