HYDRAULIC EQUIPMENT VANGUARD 21HP (from sn 524713 from 2010)

Parts list

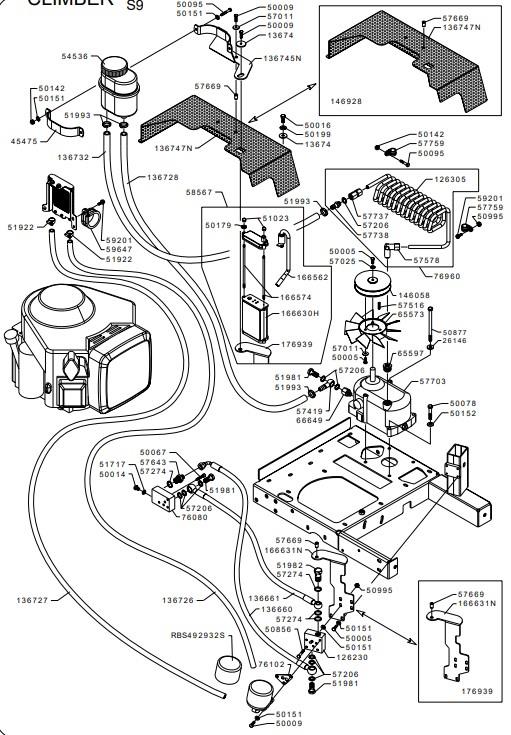

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126230126230FLANGE£34.95 Add to
136660136660HYDRAULIC HOSE£20.73 Add to
136661136661HYDRAULIC HOSE£23.00 Add to
136726136726PIPE£17.16 Add to
136727136727PIPE£17.16 Add to
136728136728PIPE£8.73 Add to
136732136732OIL PIPE 1/2 X 340£7.03 Add to
1367413674WASHER£3.43 Add to
136745N136745NSUPPORT£23.21 Add to
146058146058HYDR ENGINE PULLEY CLS9£64.23 Add to
166562166562PIPE£28.07 Add to
166574166574ROD£6.24 Add to
166630H166630HTANK£83.71 Add to
2614626146WASHER£3.64 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000950009SCREW£1.42 Add to
5001450014SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5006750067SCREW£1.45 Add to
5007850078SCREW£1.69 Add to
5009550095SCREW£1.42 Add to
5014254536TANK£74.59 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017950179WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5085650856SCREW£1.42 Add to
5087750877SCREW£2.58 Add to
5099550995NUT£1.32 Add to
5102351023NUT£0.15 Add to
5171751717WASHER£2.43 Add to
5192251922CLAMP£2.99 Add to
5198151981HOLLON SCREW£4.45 Add to
5198251982HOLLON SCREW£5.36 Add to
5199351993CLAMP£2.66 Add to
5453654536TANK£74.59 Add to
5701157011WASHER£1.30 Add to
5702557025WASHER£1.34 Add to
5720657206WASHER£1.44 Add to
5727457274WASHER£1.47 Add to
5741957419EYE JOINT£7.82 Add to
5751657516FEATHER KEY£1.10 Add to
5764357643PIPE REDUCTION£4.55 Add to
5766957669THREADED INSERT£1.64 Add to
5770357703TRANSMISSION£1,419.28 Add to
5773857738RUBBER HOLDER£4.16 Add to
5775957759CLAMP£4.01 Add to
5856758567TOOL KIT£119.57 Add to
5866158661TOOL KIT£14.67 Add to
5920159201SCREW£1.39 Add to
5964759647CLAMP£4.22 Add to
6557365573BLOWER£34.79 Add to
6559765597PIPE REDUCTION£11.97 Add to
6664966649CONNECTION£10.67 Add to
7608076080FLANGE£38.86 Add to
7610276102GASKET£2.42 Add to
7696076960COOLING PART£155.21 Add to
RBS492932SRBS492932SOIL FILTER£38.58 Add to
