HYDROSTATIC AXLE (from sn 656193 to sn 669133 from 2018 to 2018)

Parts list

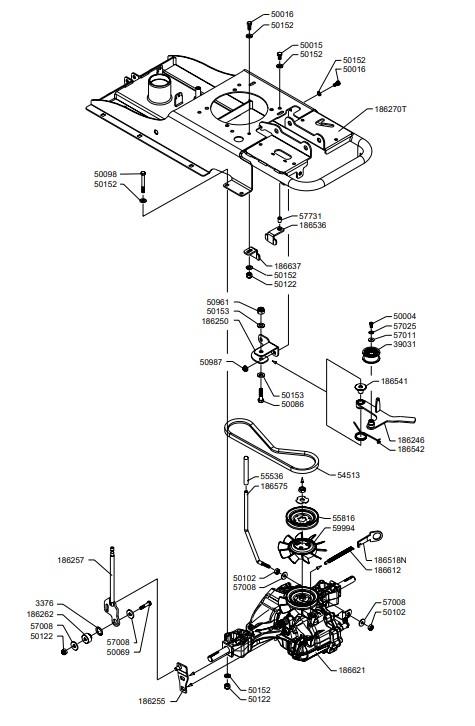

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
186246186246SUPPORT£45.96 Add to
186262186262BUSHING£7.17 Add to
186536186536BRACKET£6.48 Add to
186541186541BUSHING£16.47 Add to
186542186542SPRING£16.12 Add to
186575186575LEVER£16.12 Add to
186612186612SPRING£13.43 Add to
186621186621HYDROS. TRANSMISSION CL62£1,333.74 Add to
186637186637BRACKET£6.48 Add to
33763376SPACER£3.02 Add to
3903139031GUIDE PULLEY£13.51 Add to
5000450004SCREW£1.36 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5006950069SCREW£1.59 Add to
5008650086SCREW£1.86 Add to
5009850098SCREW£1.97 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5451354513BELT£40.79 Add to
5581655816PULLEY£58.91 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5702557025WASHER£1.34 Add to
5773157731THREADED INSERT£1.86 Add to
5999459994BLOWER£49.38 Add to
