HYDROSTATIC ENGINE (from sn 633911 from 2017)

Parts list

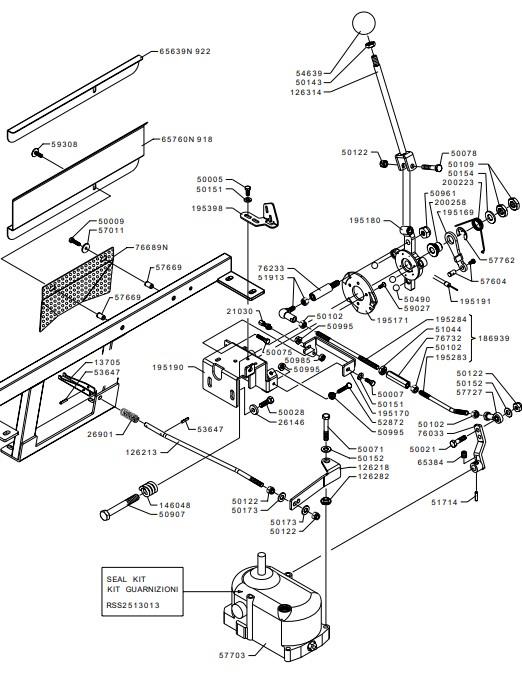

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126213126213CONTROL ROD£10.86 Add to
126218126218SMALL PLATE£7.31 Add to
126282126282BUSHING£5.96 Add to
126314126314ROD£27.41 Add to
1370513705LEVER£7.55 Add to
146048146048LEVER SPRING£8.58 Add to
186939186939COMPLETE FORWARD LEVER£22.39 Add to
195169195169LEVER£6.79 Add to
195170195170BRACKET£7.30 Add to
195171195171DISK£16.70 Add to
195180195180SUPPORT£80.31 Add to
195190195190SUPPORT£64.25 Add to
195191195191WIRE£7.46 Add to
195283195283ROD£5.73 Add to
195284195284ROD£4.81 Add to
200223200223SPRING£6.22 Add to
200258200258BUSHING£10.04 Add to
2103021030ADJUSTER£3.67 Add to
2614626146WASHER£3.64 Add to
2690126901SPRING£4.42 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000750007SCREW£1.50 Add to
5000950009SCREW£1.42 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5007150071SCREW£1.75 Add to
5007550075SCREW£1.42 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5014350143NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017350173WASHER£1.34 Add to
5049050490BALL£2.36 Add to
5090750907SCREW£2.90 Add to
5096150961NUT£1.61 Add to
5098550985NUT£1.30 Add to
5099550995NUT£1.32 Add to
5104451044NUT£2.54 Add to
5191351913ARTICULATION£11.23 Add to
5287252872SCREW£1.44 Add to
5364753647SPRING PIN£1.34 Add to
5463954639BALL£6.60 Add to
5701157011WASHER£1.30 Add to
5760457604CLAMP£3.24 Add to
5766957669THREADED INSERT£1.64 Add to
5770357703TRANSMISSION£1,419.28 Add to
5772757727CYLINDER HEAD£23.47 Add to
5776257762RING SNAP£1.86 Add to
5902759027SCREW£1.41 Add to
5930859308SCREW£1.92 Add to
6538465384ALLEN SCREW£4.57 Add to
65639N65639NGUARD£7.14 Add to
65760N65760NGUARD£22.08 Add to
7603376033LEVER£35.18 Add to
7623376233EXTENSION£8.11 Add to
76689N76689NGUARD£16.09 Add to
7673276732EXTENSION£9.75 Add to
RSS2513013RSS2513013SEAL RINGS KIT£112.59 Add to
