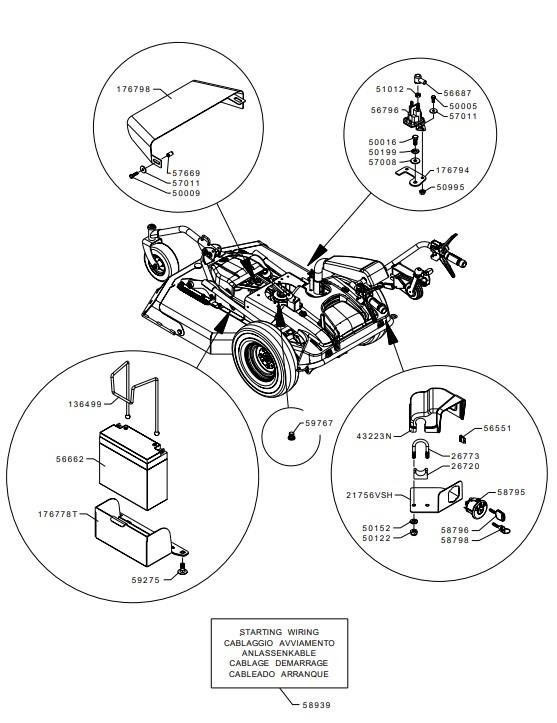

INTEK 3130 ELECTRIC EQUIPMENT (from sn 560644 from 2012)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136499136499RUBBER BAND£6.12 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
43223N43223NBOX£8.56 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5099550995NUT£1.32 Add to
5101251012NUT£1.54 Add to
5655156551FUSE£2.48 Add to
5666256662DRY BATTERY£128.27 Add to
5668756687INSULATING CAP£2.31 Add to
5679656796RELAY£45.01 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5766957669THREADED INSERT£1.64 Add to
5879558795IGNITION SWITCH£27.18 Add to
5879658796IGNITION KEY£8.56 Add to
5879858798IGNITION KEY£6.12 Add to
5927559275SCREW£0.84 Add to
5976759767PLUG£2.19 Add to
