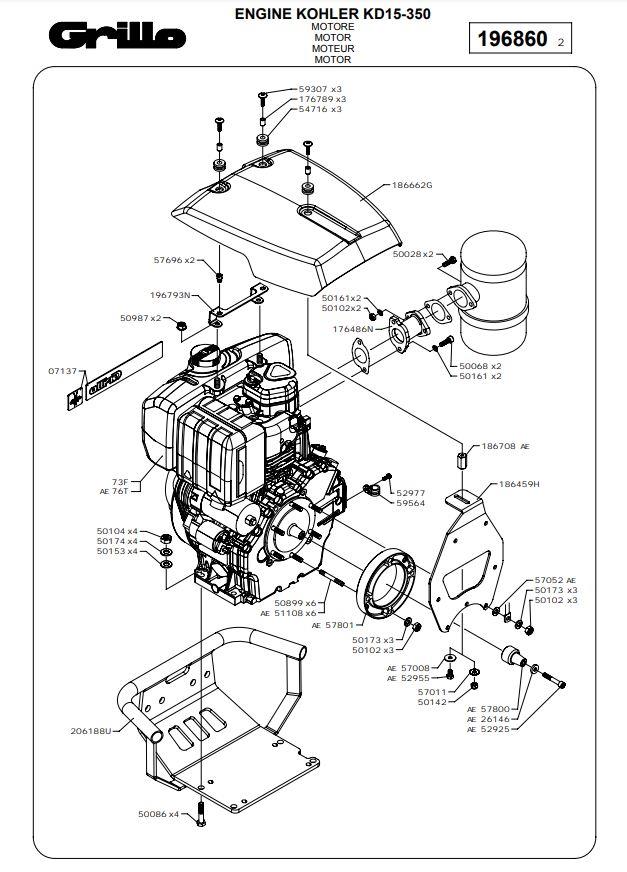

KOHLER KD15-350 ENGINE (from sn 701997 from 2012)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0713707137STICKER£7.85 Add to
176486N176486NMANIFOLD£41.47 Add to
176789176789SPACER£3.45 Add to
186459H186459HSUPPORT£32.37 Add to
186662G186662GHOOD£107.40 Add to
186708186708EXTENSION£5.99 Add to
196793N196793NENGINE HOOD BRACKET£12.01 Add to
206188U206188UBUMPER£179.06 Add to
2614626146WASHER£3.64 Add to
5002850028SCREW£1.49 Add to
5006850068SCREW£1.52 Add to
5008650086SCREW£1.86 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015350153WASHER£1.34 Add to
5016150161WASHER£1.66 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5089950899STUD£2.04 Add to
5098750987NUT£2.72 Add to
5110851108STUD£4.10 Add to
5292552925SCREW£1.69 Add to
5295552955SCREW£1.59 Add to
5297752977SCREW£1.44 Add to
5471654716PACKING RING£1.74 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5769657696THREADED INSERT£1.61 Add to
5780057800ENGINE EXTENSION CONE£10.99 Add to
5780157801FLANGE£42.15 Add to
5930759307SCREW£2.41 Add to
5956459564CLAMP£3.36 Add to
