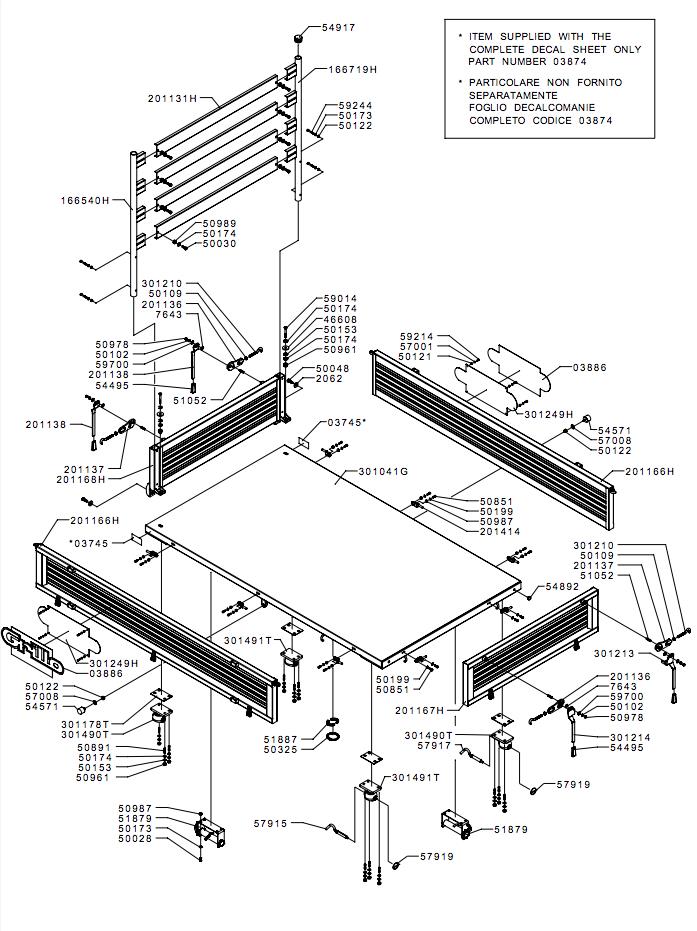

LOADING PLATFORM(from s/n 564371 from 2012)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
201136201136HINGE£61.36 Add to
201138201138LEVER£28.55 Add to
201166H201166HSIDE£398.00 Add to
201167H201167HSIDE£207.85 Add to
201168H201168HSIDE£324.34 Add to
201414201414PIN£13.94 Add to
20622062WASHER£3.77 Add to
301210301210HOOK£10.62 Add to
301490T301490TCAP£96.19 Add to
301491T301491TCAP£101.57 Add to
4660846608WASHER£3.44 Add to
5002850028SCREW£1.49 Add to
5003050030SCREW£1.64 Add to
5004850048SCREW£1.90 Add to
5010250102NUT£1.36 Add to
5010950109NUT£1.52 Add to
5012150121NUT£1.36 Add to
5012250122NUT£1.44 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5019950199WASHER£1.58 Add to
5085150851SCREW£1.58 Add to
5089150891STUD£3.20 Add to
5096150961NUT£1.61 Add to
5097850978NUT£1.75 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5105251052STUD£1.76 Add to
5188751887RING£17.93 Add to
5449554495HANDLE£3.31 Add to
5457154571RUBBER PAD£7.22 Add to
5489254892PLUG£2.57 Add to
5491754917PLUG£2.52 Add to
5700157001WASHER£1.36 Add to
5700857008WASHER£1.35 Add to
5791557915PIN£13.17 Add to
5791757917PIN£12.75 Add to
5901459014SCREW£2.94 Add to
5921459214SCREW£1.45 Add to
5924459244SCREW£1.59 Add to
5970059700BELLEVILLE SPRING£1.59 Add to
76437643SPACER£2.71 Add to
