LOMBARDINI 3LD510 E-STARTER & LIGHTS(from s/n 200251 to s/n 541586 from 1991 to 2011)

Parts list

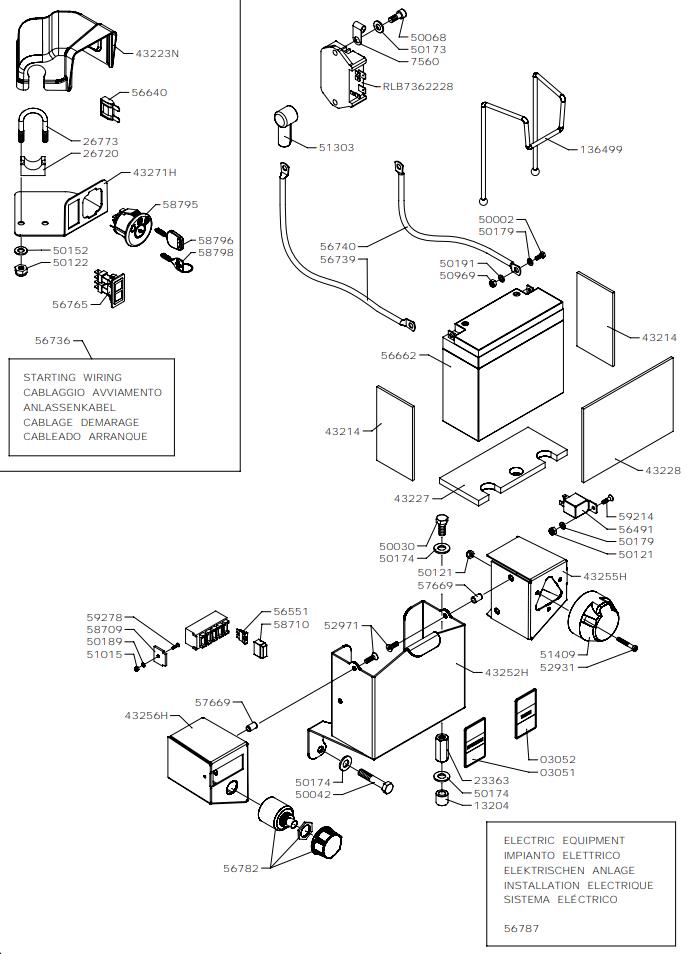

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0305103051STICKER£5.19 Add to
0305203052STICKER£5.62 Add to
1320413204SPACER£3.52 Add to
136499136499RUBBER BAND£6.12 Add to
2336323363NUT£5.85 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
4321443214INSULATOR£4.38 Add to
43223N43223NBOX£8.56 Add to
4322743227INSULATOR£5.43 Add to
4322843228INSULATOR£5.43 Add to
43252H43252HBATTERY BOX£42.70 Add to
43255H43255HSUPPORT£44.83 Add to
43256H43256HSUPPORT£44.83 Add to
43271H43271HSUPPORT£10.03 Add to
5000250002SCREW£1.37 Add to
5003050030SCREW£1.64 Add to
5004250042SCREW£1.97 Add to
5006850068SCREW£1.52 Add to
5012150121NUT£1.36 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017950179WASHER£1.30 Add to
5018950189WASHER£1.34 Add to
5096950969NUT£1.30 Add to
5101551015NUT£1.34 Add to
5130351303INSULATING CAP£2.81 Add to
5140951409COUPLING JOINT£21.77 Add to
5293152931SCREW£1.44 Add to
5297152971SCREW£1.36 Add to
5649156491RELAY£22.49 Add to
5655156551FUSE£2.48 Add to
5664056640FUSE£5.67 Add to
5666256662DRY BATTERY£128.27 Add to
5673656736HARNESS, WIRING£62.80 Add to
5673956739CABLES BATTERY BOOSTER£20.56 Add to
5674056740CABLES BATTERY BOOSTER£18.77 Add to
5676556765WARNING LIGHT£11.55 Add to
5678256782ELECTRONIC CONTROL PANELS£47.49 Add to
5678756787HARNESS,WIRING£190.25 Add to
5766957669THREADED INSERT£1.64 Add to
5871058710FUSE COVER£2.31 Add to
5879558795IGNITION SWITCH£27.18 Add to
5879658796IGNITION KEY£8.56 Add to
5879858798IGNITION KEY£6.12 Add to
5921459214SCREW£1.45 Add to
5927859278SCREW£1.36 Add to
75607560FAIRLEAD£5.61 Add to
RLB7362228RLB7362228ADJUSTER£154.31 Add to
