LOMBARDINI FOCS ENGINE(from sn 129701 from 1986)

Parts list

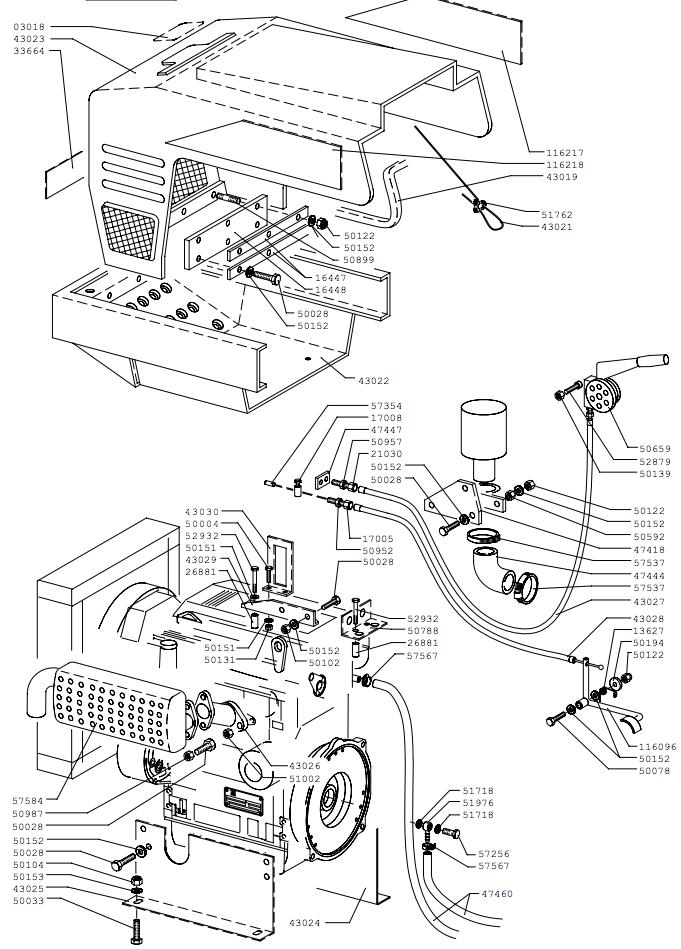

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1362713627LEVER SPRING£7.98 Add to
1644816448REAR FENDER£174.79 Add to
1700517005ADJUSTER£5.27 Add to
1700817008BAFFLE-RR-CHUTE£44.26 Add to
2103021030ADJUSTER£3.67 Add to
5000450004SCREW£1.36 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5019450194WASHER£1.60 Add to
5065950659ACCELERATOR CONTROL LEVER£16.05 Add to
5089950899STUD£2.04 Add to
5095250952NUT£1.36 Add to
5095750957NUT£1.34 Add to
5098750987NUT£2.72 Add to
5171851718WASHER£2.43 Add to
5287952879SCREW£1.39 Add to
5293252932SCREW£1.64 Add to
5725657256HOLLOW SCREW£6.36 Add to
5735457354BOOT£1.60 Add to
5753757537CLAMP£2.95 Add to
