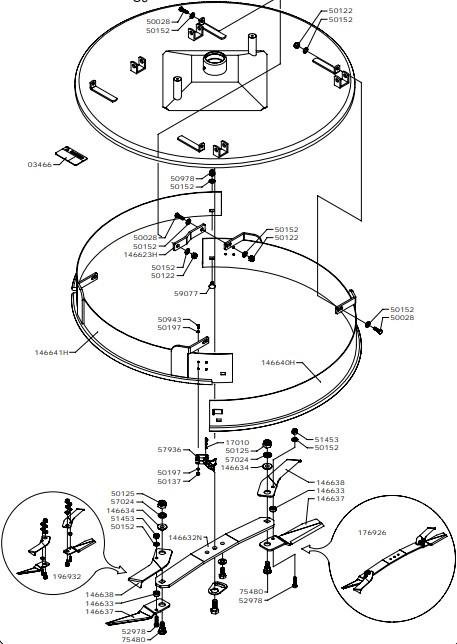

MULCHING KIT (from sn 264001 from 2001)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
146623H146623HBRACKET£8.82 Add to
146632N146632NCENTRAL CASING£66.49 Add to
146633146633SPACER£8.53 Add to
146634146634BUSHING£8.83 Add to
146640H146640HHALF GEARCASE£150.26 Add to
146641H146641HHALF GEARCASE£177.33 Add to
1701017010SPLIT PIN£1.99 Add to
176926176926CUTTING BLADE£241.26 Add to
196932196932CUTTING BLADE£175.96 Add to
5002850028SCREW£1.49 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5013750137NUT£1.30 Add to
5015250152WASHER£1.30 Add to
5019750197WASHER£1.29 Add to
5094350943SCREW£1.42 Add to
5097850978NUT£1.75 Add to
5145351453NUT£1.36 Add to
5297852978SCREW£1.59 Add to
5702457024WASHER£1.49 Add to
5793657936LOCK£14.45 Add to
5907759077SCREW£1.74 Add to
7548075480BLADE PIN£11.58 Add to
