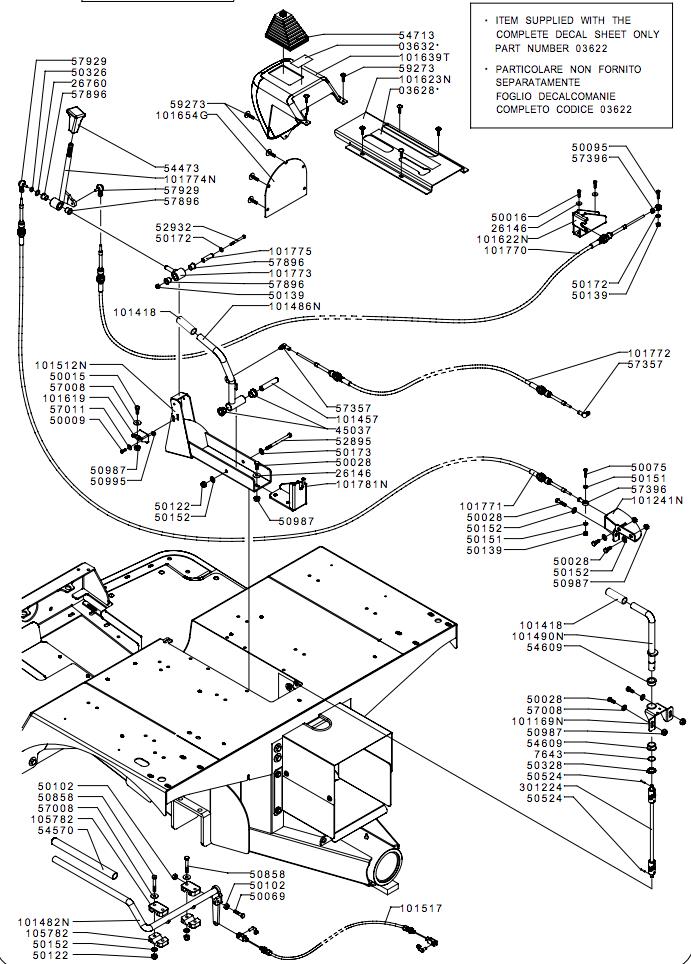

OPERATING LEVERS(from s/n 344001 from 2005)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101517101517CABLE£44.39 Add to
101639T101639TDASHBOARD£116.97 Add to
101770101770CABLE£140.50 Add to
101771101771CABLE£131.95 Add to
101772101772CABLE£129.48 Add to
101773101773BUSHING£51.04 Add to
101774N101774NROD£69.35 Add to
101775101775SPACER£13.02 Add to
105782105782BLOCK£6.90 Add to
2614626146WASHER£3.64 Add to
2676026760SPACER£2.87 Add to
301224301224PROPELLER SHAFT£168.27 Add to
4503745037BUSHING£4.36 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5006950069SCREW£1.59 Add to
5007550075SCREW£1.42 Add to
5009550095SCREW£1.42 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5032650326CIRCLIP£1.37 Add to
5032850328CIRCLIP£1.44 Add to
5052450524PIN£1.42 Add to
5085850858SCREW£1.71 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5289552895SCREW£1.85 Add to
5293252932SCREW£1.64 Add to
5447354473KNOB£10.53 Add to
5457054570HANDLE£6.60 Add to
5460954609NYLON BUSHING£4.01 Add to
5471354713RUBBER BELLOW£19.64 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5735757357ARTICULATION£10.46 Add to
5739657396JOINT HEAD£31.44 Add to
5789657896BUSHING£4.15 Add to
5792957929BALL JOINT£17.78 Add to
76437643SPACER£2.71 Add to
