OPERATING LEVERS(from s/n 564371 from 2012)

Parts list

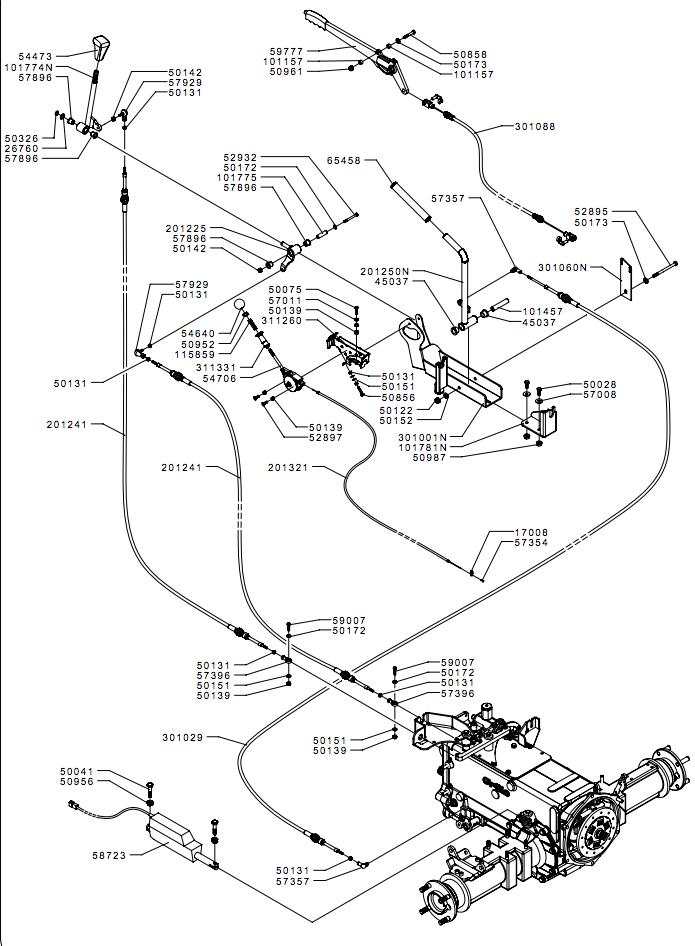

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101774N101774NROD£69.35 Add to
101775101775SPACER£13.02 Add to
115859115859LEVER SPRING£4.66 Add to
1700817008BAFFLE-RR-CHUTE£44.26 Add to
201225201225PIN£67.02 Add to
201241201241CABLE£195.41 Add to
201321201321WIRE£23.81 Add to
2676026760SPACER£2.87 Add to
301029301029CABLE£159.65 Add to
301088301088CABLE£188.47 Add to
4503745037BUSHING£4.36 Add to
5002850028SCREW£1.49 Add to
5007550075SCREW£1.42 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5013950139NUT£1.34 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5032650326CIRCLIP£1.37 Add to
5085650856SCREW£1.42 Add to
5085850858SCREW£1.71 Add to
5095250952NUT£1.36 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5289552895SCREW£1.85 Add to
5289752897SCREW£1.37 Add to
5293252932SCREW£1.64 Add to
5447354473KNOB£10.53 Add to
5464054640BALL£6.17 Add to
5470654706ACCELERATOR CONTROL LEVER£29.71 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5735457354BOOT£1.60 Add to
5735757357ARTICULATION£10.46 Add to
5739657396JOINT HEAD£31.44 Add to
5789657896BUSHING£4.15 Add to
5792957929BALL JOINT£17.78 Add to
5872358723ELECTRIC CYLINDER£467.06 Add to
5900759007SCREW£1.40 Add to
6545865458HANDLE£8.52 Add to
