PEDALS AND BRAKE (from sn 586075 to sn 586944 from 2014 to 2014)

Parts list

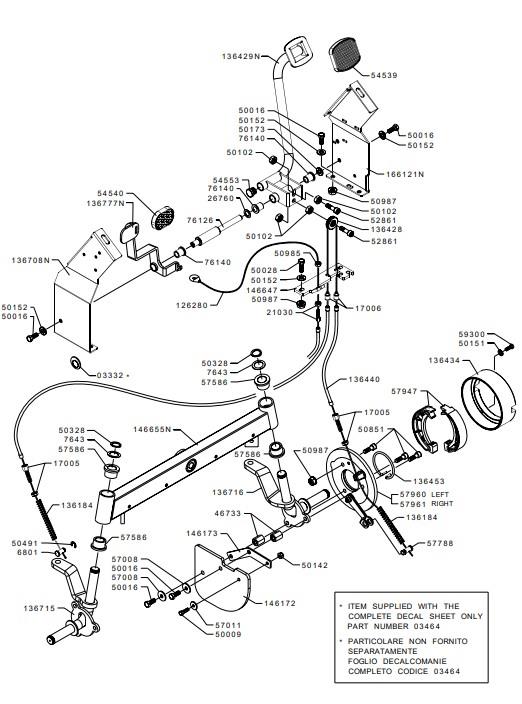

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0346403464STICKER£30.77 Add to
126280126280WIRE£6.33 Add to
136184136184SPRING£4.47 Add to
136428136428PULLEY£8.59 Add to
136429N136429NPEDAL£53.74 Add to
136434136434BRAKE DRUM£59.82 Add to
136440136440WIRE£9.71 Add to
136453136453SPRING£5.25 Add to
136708N136708NBRACKET£39.14 Add to
136715136715SPINDLE£50.09 Add to
136716136716SPINDLE£50.09 Add to
136777N136777NPEDAL£27.25 Add to
146172146172GUARD PLATE£17.06 Add to
146173146173BRACKET£4.66 Add to
146647146647BRACKET£9.95 Add to
146655N146655NAXLE£158.94 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
2103021030ADJUSTER£3.67 Add to
2676026760SPACER£2.87 Add to
4673346733EXTENSION£4.03 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5032850328CIRCLIP£1.44 Add to
5049150491RING SNAP£1.44 Add to
5085150851SCREW£1.58 Add to
5098550985NUT£1.30 Add to
5098750987NUT£2.72 Add to
5286152861SCREW£1.59 Add to
5453954539DUST CAP£14.01 Add to
5454054540DUST CAP£6.79 Add to
5455354553PLUG£0.78 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5758657586BUSHING£4.01 Add to
5778857788CLAMP£3.39 Add to
5794757947BRAKE£18.37 Add to
5796057960BRAKES GROUP BLOCKHOLDER£115.92 Add to
5796157961BRAKES GROUP BLOCKHOLDER£115.92 Add to
5930059300SCREW£1.49 Add to
68016801CONNECTION£9.59 Add to
7612676126PIN£26.22 Add to
7614076140NYLON BUSHING£6.83 Add to
76437643SPACER£2.71 Add to
