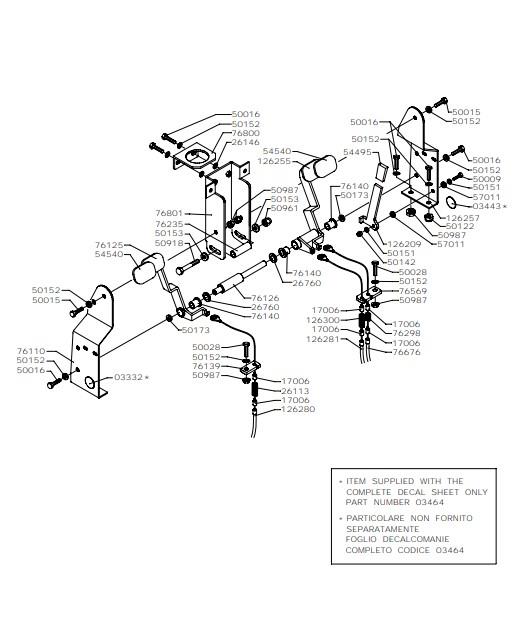

PEDALS UNIT (from sn 363301 to sn 385500 from 2006 from 2007)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0346403464STICKER£30.77 Add to
126209126209LEVER£4.70 Add to
126280126280WIRE£6.33 Add to
126300126300SPRING£9.06 Add to
1700617006BUSHING£51.96 Add to
2611326113SPRING£3.64 Add to
2614626146WASHER£3.64 Add to
2676026760SPACER£2.87 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5091850918SCREW£2.58 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5449554495HANDLE£3.31 Add to
5454054540DUST CAP£6.79 Add to
5701157011WASHER£1.30 Add to
7612676126PIN£26.22 Add to
7613976139SMALL PLATE£2.46 Add to
7614076140NYLON BUSHING£6.83 Add to
7629876298SPRING£3.81 Add to
7656976569SMALL PLATE£3.55 Add to
7667676676BRAKES CABLE£5.75 Add to
