PTO TRANSMISSION AND WHEELS (from sn 666659 to sn 688848 from 2018 to 2020)

Parts list

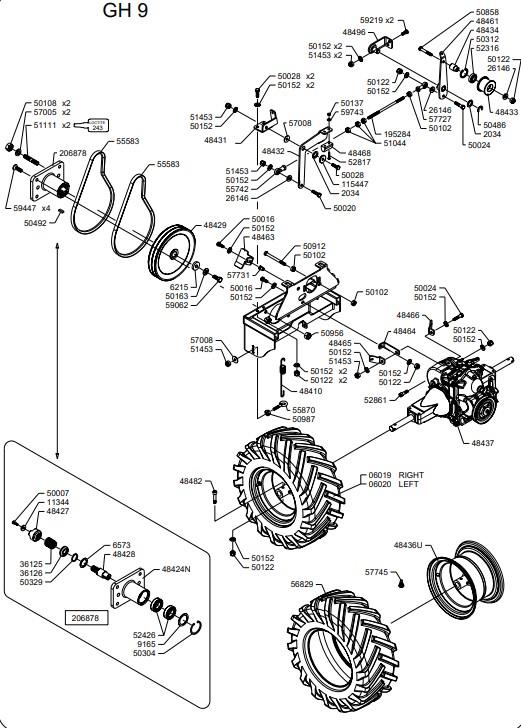

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0601906019RUBBER WHEEL£228.82 Add to
0602006020RUBBER WHEEL£228.82 Add to
1134411344WASHER£2.95 Add to
115447115447BUSHING£3.81 Add to
195284195284ROD£4.81 Add to
20342034SPACER£3.02 Add to
206878206878FLANGE CONNECTION£204.95 Add to
2614626146WASHER£3.64 Add to
3612536125SPRING£3.92 Add to
3612636126SPRING GUIDE£3.92 Add to
4841048410SPRING£13.34 Add to
48424N48424NFLANGE CONNECTION£83.20 Add to
4842748427COUPLING£31.21 Add to
4842848428SHAFT£46.81 Add to
4843148431BRACKET£11.72 Add to
4843248432BRACKET£18.71 Add to
4843348433GUIDE PULLEY£24.27 Add to
4843448434BUSHING£3.47 Add to
4846148461LEVER£14.74 Add to
4846348463BRACKET£7.80 Add to
4846448464BRACKET£5.20 Add to
4846548465BRACKET£5.20 Add to
4846648466Tube, Upper Hopper Frame (Front)£103.64 Add to
4846848468BLADE BRAKE 2AV CLS7/CL75£12.99 Add to
4848248482SCREW£1.95 Add to
4849648496BRACKET£16.47 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5002050020SCREW£1.44 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5010850108NUT£1.71 Add to
5012250122NUT£1.44 Add to
5013750137NUT£1.30 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5016350163WASHER£1.34 Add to
5030450304CIRCLIP£2.09 Add to
5031250312CIRCLIP£1.71 Add to
5032950329CIRCLIP£1.68 Add to
5048650486RING SNAP£1.52 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5085850858SCREW£1.71 Add to
5091250912SCREW£2.13 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5104451044NUT£2.54 Add to
5111151111STUD£4.11 Add to
5145351453NUT£1.36 Add to
5231652316BEARING£8.54 Add to
5242652426BEARING£16.59 Add to
5281752817SCREW£1.32 Add to
5286152861SCREW£1.59 Add to
5558355583BELT£53.75 Add to
5574255742CYLINDER HEAD£9.70 Add to
5587055870EYEBOLT£7.43 Add to
5682956829TYRE£123.96 Add to
5700557005WASHER£1.60 Add to
5700857008WASHER£1.35 Add to
5772757727CYLINDER HEAD£23.47 Add to
5773157731THREADED INSERT£1.86 Add to
5774557745VALVE£3.73 Add to
5906259062SCREW£1.71 Add to
5921959219SCREW£1.60 Add to
5944759447SCREW£0.71 Add to
5974359743BELLEVILLE SPRING£0.15 Add to
62156215WASHER£4.15 Add to
65736573SPACER£2.70 Add to
91659165SPACER£3.41 Add to
