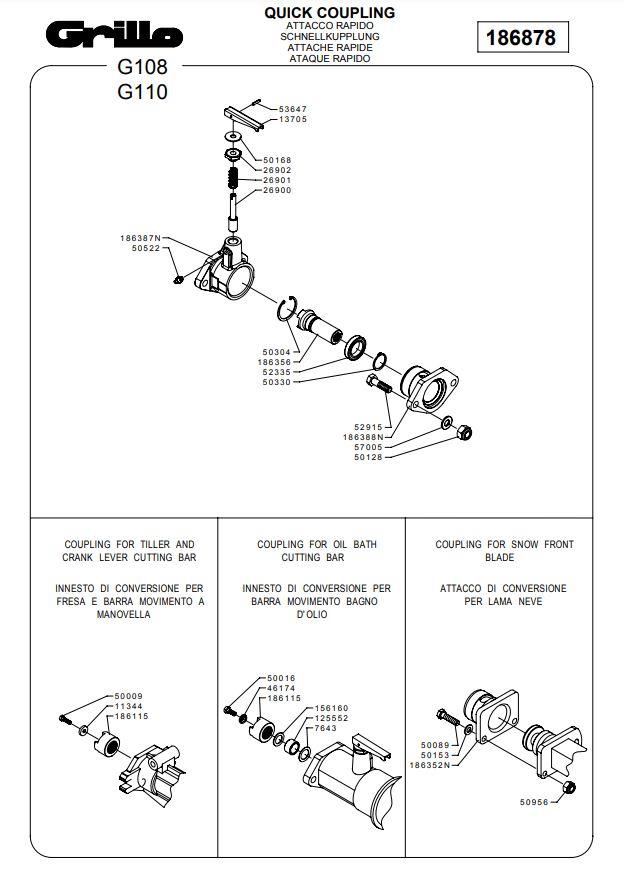

QUICK COUPLING (from sn 585297 from 2014)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1134411344WASHER£2.95 Add to
125552125552SPACER£4.56 Add to
1370513705LEVER£7.55 Add to
156160156160WASHER£0.76 Add to
186115186115COUPLING£44.14 Add to
186352N186352NFLANGE CONNECTION£144.21 Add to
186356186356SHAFT£51.74 Add to
186387N186387NCONNECTION£131.19 Add to
186388N186388NFLANGE CONNECTION£77.96 Add to
2690026900PIN£22.62 Add to
2690126901SPRING£4.42 Add to
2690226902SCREW£7.40 Add to
4617446174WASHER£2.23 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5008950089SCREW£1.85 Add to
5012850128NUT£1.58 Add to
5015350153WASHER£1.34 Add to
5016850168WASHER£1.45 Add to
5030450304CIRCLIP£2.09 Add to
5033050330CIRCLIP£1.76 Add to
5052250522FITTING£2.27 Add to
5095650956NUT£1.47 Add to
5233552335BEARING£7.30 Add to
5291552915SCREW£1.99 Add to
5364753647SPRING PIN£1.34 Add to
5700557005WASHER£1.60 Add to
76437643SPACER£2.71 Add to
