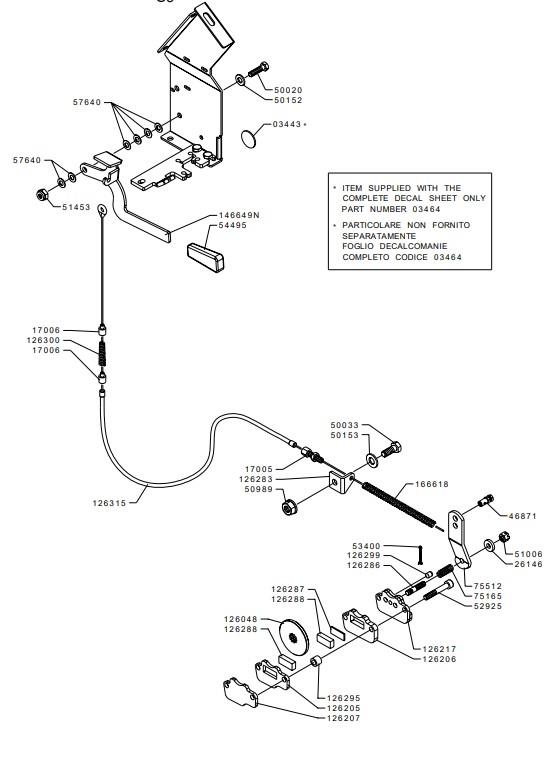

REAR BRAKE UNIT (from sn 573110 from 2013)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0346403464STICKER£30.77 Add to
126048126048BRAKE DISC£18.45 Add to
126205126205PLATE£4.66 Add to
126206126206PLATE£7.55 Add to
126207126207PLATE£3.73 Add to
126217126217PLATE£17.25 Add to
126283126283SMALL PLATE£4.70 Add to
126286126286STUD£2.99 Add to
126287126287SPACER£2.05 Add to
126288126288DISK£6.48 Add to
126295126295SPACER£9.90 Add to
126299126299PIN£1.51 Add to
126300126300SPRING£9.06 Add to
126315126315BRAKES CABLE£11.25 Add to
146649N146649NLEVER£18.12 Add to
166618166618SPRING£4.81 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
2614626146WASHER£3.64 Add to
4687146871CLAMP, CABLE£4.81 Add to
5002050020SCREW£1.44 Add to
5003350033SCREW£1.66 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5098950989NUT£1.59 Add to
5100651006NUT£1.74 Add to
5145351453NUT£1.36 Add to
5292552925SCREW£1.69 Add to
5340053400SPLIT PIN£1.36 Add to
5449554495HANDLE£3.31 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
7516575165SPRING£3.92 Add to
7551275512BRAKE LEVER£17.20 Add to
