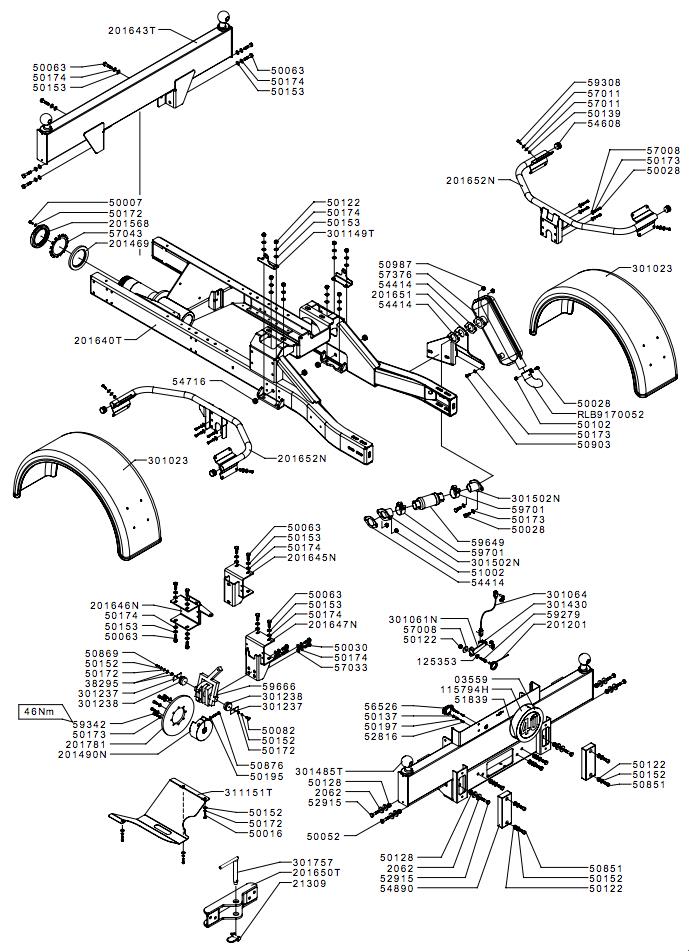

REAR FRAME(from s/n 564371 from 2012)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0355903559STICKER£25.65 Add to
115794H115794HSUPPORT£11.93 Add to
125353125353NYLON BUSHING£8.42 Add to
201201201201SPRING£48.33 Add to
201469201469WASHER£211.21 Add to
201568201568RING NUT£68.90 Add to
201781201781BRAKE DISC£159.05 Add to
20622062WASHER£3.77 Add to
2130921309PIN£12.54 Add to
301023301023FENDER£127.89 Add to
301064301064CABLE£53.18 Add to
301237301237SPRING£9.17 Add to
301238301238DISK£33.36 Add to
301502N301502NMANIFOLD£33.50 Add to
3829538295WASHER£3.43 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5003050030SCREW£1.64 Add to
5005250052SCREW£2.19 Add to
5006350063SCREW£1.61 Add to
5008250082SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5012850128NUT£1.58 Add to
5013750137NUT£1.30 Add to
5013950139NUT£1.34 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5019550195WASHER£1.45 Add to
5019750197WASHER£1.29 Add to
5085150851SCREW£1.58 Add to
5086950869SCREW£1.42 Add to
5087650876SCREW£1.66 Add to
5090350903SCREW£1.59 Add to
5098750987NUT£2.72 Add to
5183951839RIVET£1.49 Add to
5281652816SCREW£1.32 Add to
5291552915SCREW£1.99 Add to
5441454414GASKET£8.86 Add to
5460854608PLUG£2.49 Add to
5471654716PACKING RING£1.74 Add to
5489054890RUBBER PAD£25.69 Add to
5652656526MICRO-SWITCH£25.17 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5703357033WASHER£2.27 Add to
5704357043WASHER, FLAT£4.26 Add to
5737657376MUFFLER£225.07 Add to
5927959279SCREW£1.64 Add to
5930859308SCREW£1.92 Add to
5934259342SCREW£1.64 Add to
5964959649JOINT£156.88 Add to
5966659666BRAKE CLIPER£452.01 Add to
5970159701CLAMP£5.36 Add to
RLB9170052RLB9170052PIPE£13.63 Add to
