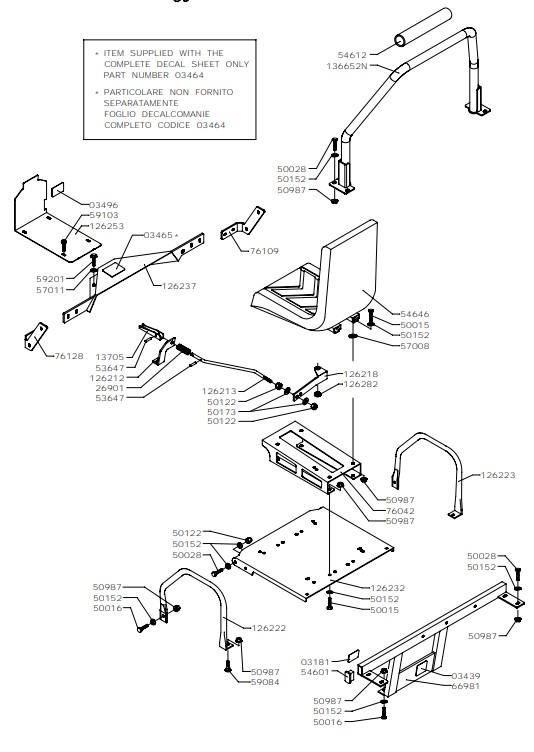

REAR FRAME (from sn 363301 to sn 385500 from 2006 to 2007)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0318103181STICKER£3.55 Add to
0346403464STICKER£30.77 Add to
0349603496STICKER£2.95 Add to
126213126213CONTROL ROD£10.86 Add to
126218126218SMALL PLATE£7.31 Add to
126282126282BUSHING£5.96 Add to
136652N136652NROLL-BAR£119.85 Add to
1370513705LEVER£7.55 Add to
2690126901SPRING£4.42 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5098750987NUT£2.72 Add to
5364753647SPRING PIN£1.34 Add to
5460154601PLUG£0.78 Add to
5461254612SURF PROTECTOR£10.57 Add to
5464654646SEAT£242.41 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5908459084SCREW£1.69 Add to
5920159201SCREW£1.39 Add to
5941159411SCREW£1.49 Add to
