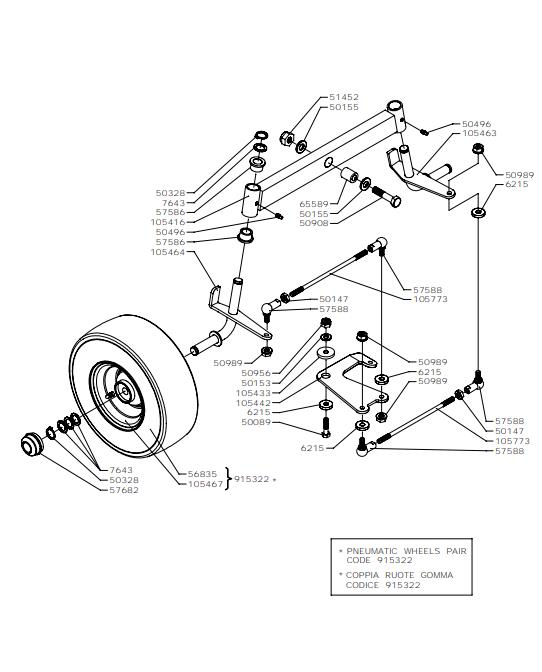

REAR WHEEL AXLE (from 524019 to sn 528735 from 2009 to 2010)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105416N105416NAXLE-REAR£93.69 Add to
105433105433BUSHING£4.69 Add to
105463105463STEERING SPINDLE£45.62 Add to
105464105464STEERING SPINDLE£45.62 Add to
105467H105467HRIM£66.21 Add to
105773105773ROD£10.41 Add to
5008950089SCREW£1.85 Add to
5014750147NUT£1.44 Add to
5015350153WASHER£1.34 Add to
5015550155WASHER£1.42 Add to
5034350343CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5090850908SCREW£3.25 Add to
5095650956NUT£1.47 Add to
5145251452NUT£2.53 Add to
5683556835TYRE£66.88 Add to
5758657586BUSHING£4.01 Add to
5758857588ARTICULATION£11.18 Add to
5768257682COVER£6.40 Add to
5774557745VALVE£3.73 Add to
62156215WASHER£4.15 Add to
6558965589SPACER£6.25 Add to
65736573SPACER£2.70 Add to
76437643SPACER£2.71 Add to
