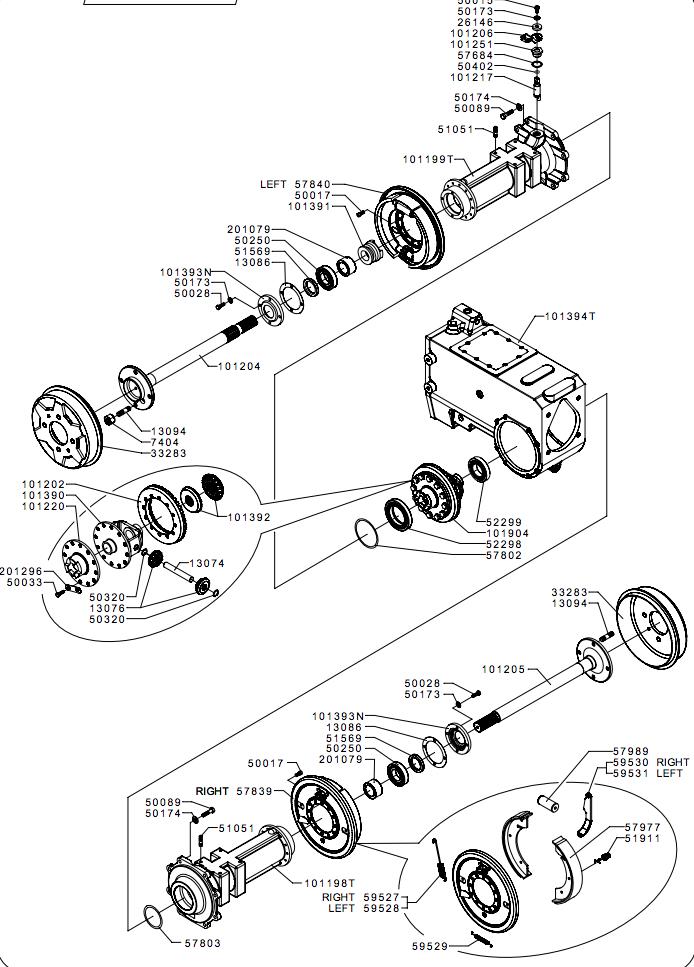

REAR WHEEL AXLE(from s/n 344001 to s/n 537310 from 2005 to 2011)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101198T101198TWHEELS AXLE CASE£518.43 Add to
101202101202RING GEAR£726.19 Add to
101217101217PIN£61.60 Add to
101220101220FLANGE£200.82 Add to
101390101390DIFFERENTIAL BOX£293.64 Add to
101391101391COUPLING£73.34 Add to
101392101392SUN GEAR£93.79 Add to
101393N101393NCOVER£59.27 Add to
101904101904DIFFERENTIAL£1,489.69 Add to
1307413074PIN£19.74 Add to
1307613076IDLE PINION£56.23 Add to
1308613086GASKET£10.84 Add to
1309413094STUD£4.07 Add to
201079201079SPACER£21.55 Add to
2614626146WASHER£3.64 Add to
5001550015SCREW£1.44 Add to
5001750017SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5008950089SCREW£1.85 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5025050250BEARING£40.22 Add to
5032050320CIRCLIP£1.45 Add to
5040250402O-RING£1.52 Add to
5105151051STUD£3.02 Add to
5156951569SEAL RING£5.27 Add to
5191151911SPRING£17.21 Add to
5229852298BEARING£99.86 Add to
5229952299BEARING£54.82 Add to
5768457684WASHER£2.36 Add to
5780257802SPACER£3.68 Add to
5780357803SPACER£8.49 Add to
5783957839BRAKE SYSTEM ELEMENT£451.58 Add to
5784057840BRAKE SYSTEM ELEMENT£451.58 Add to
5797757977BRAKE CALIPER£60.64 Add to
5798957989CYLINDER£77.11 Add to
5952759527SPRING£26.35 Add to
5952859528SPRING£26.35 Add to
5952959529SPRING£17.21 Add to
5953059530LEVER£80.97 Add to
5953159531LEVER£80.97 Add to
74047404NUT£4.59 Add to
