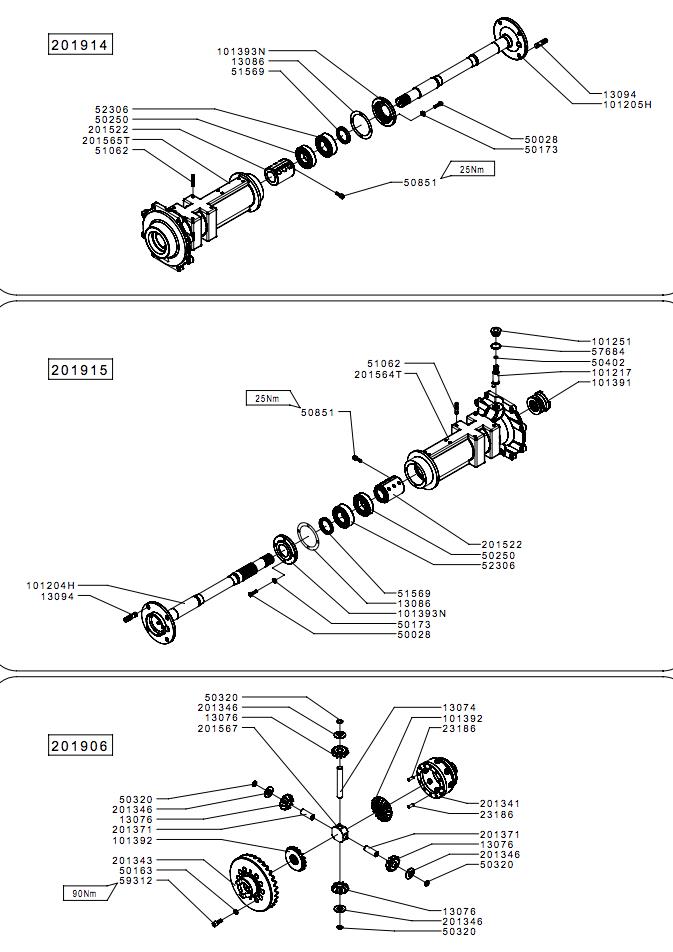

REAR WHEEL AXLE(from s/n 564371 from 2012)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101204H101204HAXLE-SHAFT£514.19 Add to
101205H101205HAXLE-SHAFT£451.96 Add to
101217101217PIN£61.60 Add to
101391101391COUPLING£73.34 Add to
101392101392SUN GEAR£93.79 Add to
101393N101393NCOVER£59.27 Add to
1307413074PIN£19.74 Add to
1307613076IDLE PINION£56.23 Add to
1308613086GASKET£10.84 Add to
1309413094STUD£4.07 Add to
201341201341DIFFERENTIAL BOX£274.33 Add to
201343201343RING GEAR£999.50 Add to
201346201346WASHER£23.81 Add to
201564T201564TWHEELS AXLE CASE£602.28 Add to
201565T201565TWHEELS AXLE CASE£536.57 Add to
201567201567BLOCK£65.12 Add to
2318623186PIN£4.95 Add to
5002850028SCREW£1.49 Add to
5016350163WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5025050250BEARING£40.22 Add to
5032050320CIRCLIP£1.45 Add to
5040250402O-RING£1.52 Add to
5085150851SCREW£1.58 Add to
5106251062SHAFT, INPUT£255.66 Add to
5156951569SEAL RING£5.27 Add to
5230652306BEARING£98.03 Add to
5768457684WASHER£2.36 Add to
5931259312SCREW£2.05 Add to
