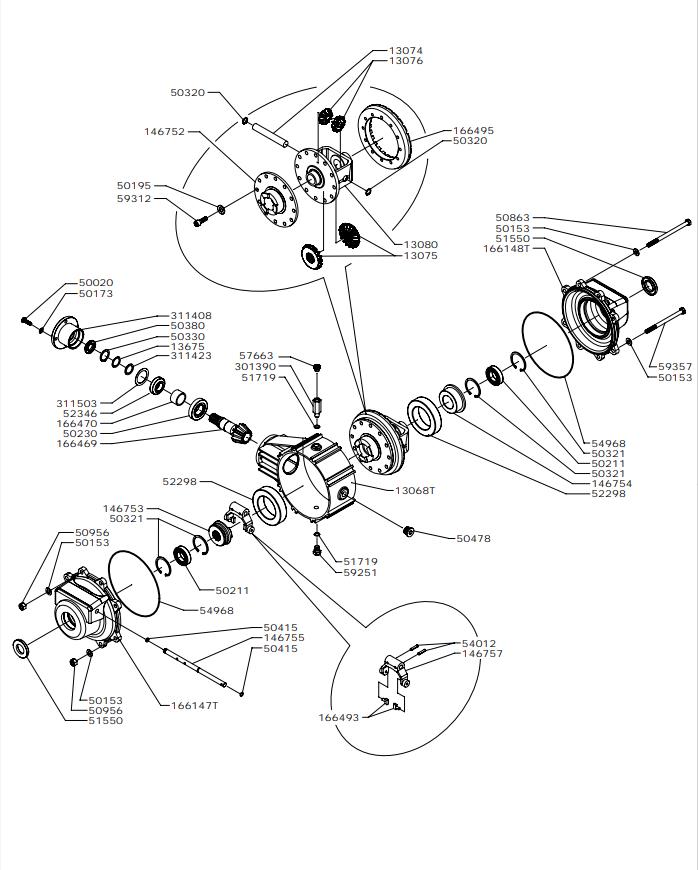

REAR WHEEL AXLE(from s/n 584231 from 2014)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
13068T13068TGEARBOX£246.04 Add to
1307413074PIN£19.74 Add to
1307513075SUN GEAR£99.64 Add to
1307613076IDLE PINION£56.23 Add to
1308013080DIFFERENTIAL BOX£283.15 Add to
166148T166148TCOVER£240.09 Add to
166470166470SPACER£10.53 Add to
166493166493PAD£30.00 Add to
301390301390EXTENSION£10.84 Add to
311408311408COVER£86.80 Add to
311423311423SPACER£2.87 Add to
5002050020SCREW£1.44 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5019550195WASHER£1.45 Add to
5021150211BEARING£21.39 Add to
5023050230BEARING£41.01 Add to
5032050320CIRCLIP£1.45 Add to
5032150321CIRCLIP£1.99 Add to
5033050330CIRCLIP£1.76 Add to
5038050380SEAL RING£7.93 Add to
5041550415O-RING£1.49 Add to
5086350863SCREW£3.48 Add to
5095650956NUT£1.47 Add to
5155051550SEAL RING£8.54 Add to
5171951719WASHER£1.59 Add to
5229852298BEARING£99.86 Add to
5401254012PIN£1.71 Add to
5496854968O-RING£2.72 Add to
5587755877SPACER£3.04 Add to
5766357663BREATHER CAP£11.00 Add to
5925159251SCREW£1.71 Add to
5931259312SCREW£2.05 Add to
5935759357SCREW£4.15 Add to
