REAR WHEEL AXLE (from sn 264001 to sn 276400 from 2000 to 2001)

Parts list

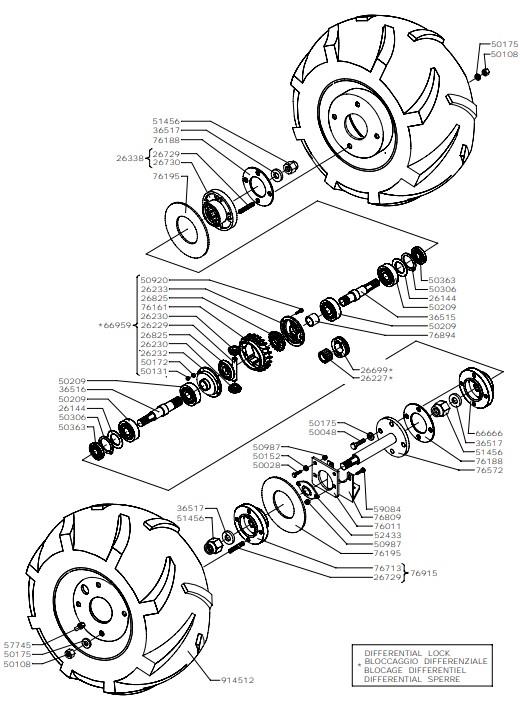

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
2614426144SPACER£3.41 Add to
2622726227BUSHING£28.92 Add to
2622926229SPRING-FRICTION£4.98 Add to
2623026230IDLE PINION£43.03 Add to
2623226232COVER£52.05 Add to
2623326233COVER£78.20 Add to
2633826338WHEEL HUB£59.85 Add to
2669926699COUPLING£55.25 Add to
2672926729STUD£3.04 Add to
2673026730HUB£44.21 Add to
2682526825SUN GEAR£58.73 Add to
3651636516HALF AXLE SHORT£60.34 Add to
3651736517WASHER£3.64 Add to
500097500097TOOL KIT£64.16 Add to
5002850028SCREW£1.49 Add to
5004850048SCREW£1.90 Add to
5010850108NUT£1.71 Add to
5013150131NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017550175WASHER£1.42 Add to
5020950209BEARING£15.55 Add to
5030650306CIRCLIP£2.31 Add to
5036350363SEAL RING£4.46 Add to
5092050920SCREW£1.45 Add to
5098750987NUT£2.72 Add to
5145651456NUT£3.79 Add to
5243352433BEARING£39.65 Add to
5774557745VALVE£3.73 Add to
5908459084SCREW£1.69 Add to
6695966959DIFFERENTIAL£469.00 Add to
7601176011PLATE£14.58 Add to
7616176161RING GEAR£348.72 Add to
7619576195GUARD£16.87 Add to
7657276572HALF AXLE LONG£223.93 Add to
