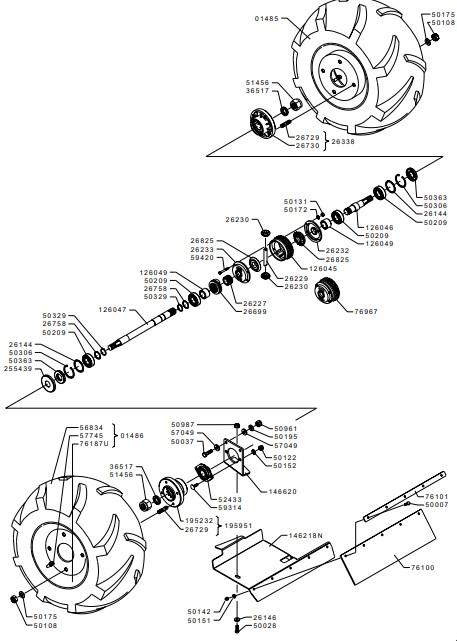

REAR WHEEL AXLE (from sn 696830 from 2020)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0148501485REAR RUBBER WHEEL CLS9 RH£243.38 Add to
0148601486REAR RUBBER WHEEL CLS9 LH£243.38 Add to
126045126045GEAR£107.54 Add to
126046126046HALF AXLE SHORT£65.02 Add to
126047126047HALF AXLE LONG£105.20 Add to
126049126049SPACER£5.22 Add to
146218N146218NSHEET£38.10 Add to
146620146620BRACKET£30.45 Add to
195232195232WHEEL HUB£58.43 Add to
195951195951WHEEL HUB£71.52 Add to
255439255439COVER£4.99 Add to
2614426144SPACER£3.41 Add to
2614626146WASHER£3.64 Add to
2622726227BUSHING£28.92 Add to
2622926229SPRING-FRICTION£4.98 Add to
2623026230IDLE PINION£43.03 Add to
2623226232COVER£52.05 Add to
2623326233COVER£78.20 Add to
2633826338WHEEL HUB£59.85 Add to
2669926699COUPLING£55.25 Add to
2672926729STUD£3.04 Add to
2673026730HUB£44.21 Add to
2675826758SPACER£3.19 Add to
2682526825SUN GEAR£58.73 Add to
3651736517WASHER£3.64 Add to
5000750007SCREW£1.50 Add to
5002850028SCREW£1.49 Add to
5003750037SCREW£1.76 Add to
5010850108NUT£1.71 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017550175WASHER£1.42 Add to
5019550195WASHER£1.45 Add to
5020950209BEARING£15.55 Add to
5030650306CIRCLIP£2.31 Add to
5032950329CIRCLIP£1.68 Add to
5036350363SEAL RING£4.46 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5145651456NUT£3.79 Add to
5243352433BEARING£39.65 Add to
5683456834TYRE CL9 REAR£121.40 Add to
5704957049WASHER£1.60 Add to
5774557745VALVE£3.73 Add to
5931459314SCREW£1.85 Add to
5942059420SCREW£1.39 Add to
7610076100GUARD PLATE£30.05 Add to
7610176101BRACKET£12.45 Add to
76187U76187URIM£111.64 Add to
7696776967DIFFERENTIAL£422.53 Add to
