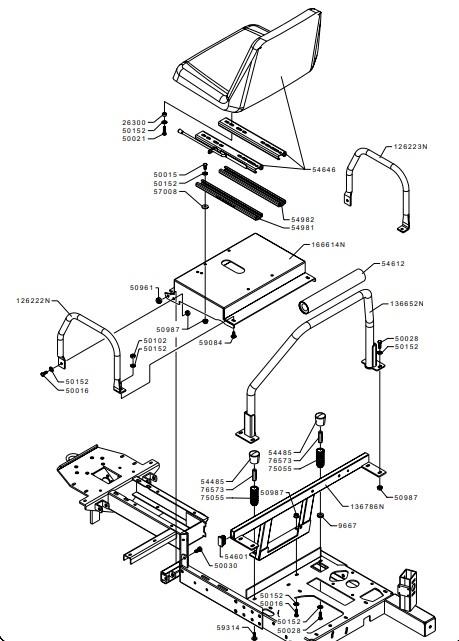

SEAT AND ROLL BAR (from sn 586075 to sn 633910 from 2014 to 2017)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126222N126222NHANDLE£27.41 Add to
126223N126223NHANDLE£27.41 Add to
136652N136652NROLL-BAR£119.85 Add to
166614N166614NSUPPORT£97.23 Add to
2630026300SPACER£3.43 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5003050030SCREW£1.64 Add to
5010250102NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5448554485PLUG£3.09 Add to
5460154601PLUG£0.78 Add to
5461254612SURF PROTECTOR£10.57 Add to
5464654646SEAT£242.41 Add to
5498154981SEAT BRACKETS£12.01 Add to
5498254982SEAT BRACKETS£12.01 Add to
5700857008WASHER£1.35 Add to
5908459084SCREW£1.69 Add to
5931459314SCREW£1.85 Add to
7505575055SEAT SPRING£9.99 Add to
7657376573EXTENSION£3.28 Add to
96679667WASHER£2.29 Add to
