SEAT SHOCK-ABSORBING BASE(from s/n 609439 to s/n 665510 from 2016 to 2018)

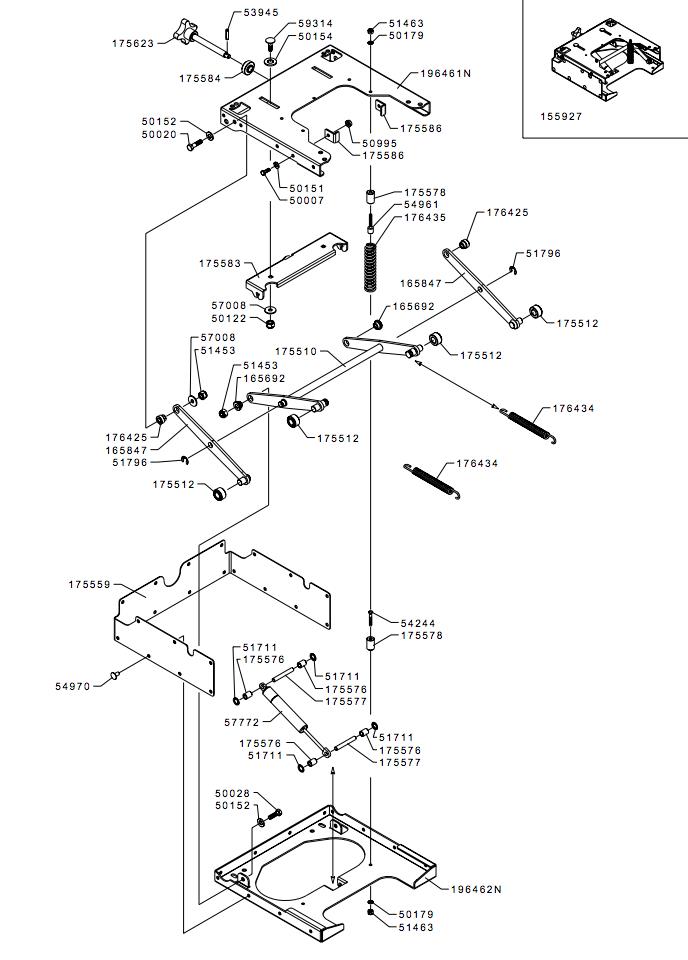

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
155927155927SEAT SHOCK-ABSORBING BASE£511.43 Add to
165847165847ARM£14.83 Add to
175510175510SEAT ROCKER ARM£194.95 Add to
175512175512NYLON BUSHING£9.56 Add to
175559175559GUARD£33.47 Add to
175576175576SPACER£4.55 Add to
175577175577PIN£3.43 Add to
175578175578SPACER£7.84 Add to
175583175583BRACKET£53.13 Add to
175586175586STOP£7.84 Add to
175623175623CONTROL HANDWHEEL£32.92 Add to
176425176425BUSHING£7.84 Add to
176434176434SPRING£16.82 Add to
176435176435SEAT SPRING£12.50 Add to
196462N196462NSUPPORT£59.57 Add to
5000750007SCREW£1.50 Add to
5002050020SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5012250122NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017950179WASHER£1.30 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5146351463NUT£1.34 Add to
5171151711RING£1.44 Add to
5179651796RING SNAP£1.34 Add to
5394553945PIN£1.54 Add to
5424454244SCREW£1.32 Add to
5497054970RIVET£1.58 Add to
5700857008WASHER£1.35 Add to
5777257772SHOCKABSORBER£74.19 Add to
5931459314SCREW£1.85 Add to
