STEERING UNIT AND SEAT UNTIL SERIAL NO. 561435 (from sn 505450 to sn 561435 from 2008 to 2012)

Parts list

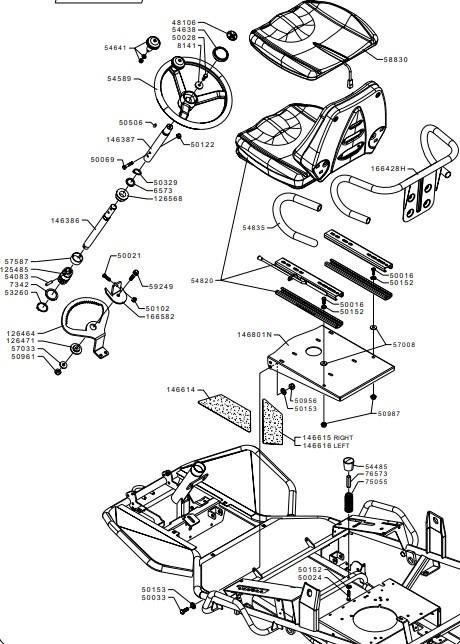

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
125485125485PINION£49.72 Add to
126464126464SECTOR£60.15 Add to
126471126471BUSHING£8.32 Add to
126568126568BUSHING£25.17 Add to
146386146386STEERING COLUMN£192.79 Add to
146387146387EXTENSION£35.81 Add to
146614146614FOOTBOARD£5.61 Add to
146615146615FOOTBOARD£5.61 Add to
146616146616FOOTBOARD£5.61 Add to
146801N146801NSUPPORT£56.47 Add to
166428H166428HARM£131.97 Add to
166582166582REINFORCEMENT£9.82 Add to
4810648106STICKER£4.27 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5006950069SCREW£1.59 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5032950329CIRCLIP£1.68 Add to
5050650506FEATHER KEY 5 X 7.5 UNI 6606£2.48 Add to
5095650956NUT£1.47 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5326053260CIRCLIP£2.15 Add to
5408354083PIN£1.95 Add to
5448554485PLUG£3.09 Add to
5458954589STEERING WHEEL£79.57 Add to
5463854638PLUG£6.40 Add to
5464154641KNOB£7.22 Add to
5483554835INSULATOR£11.01 Add to
5700857008WASHER£1.35 Add to
5703357033WASHER£2.27 Add to
5758757587BUSHING£7.51 Add to
5883058830SEAT WITH MICRO£110.98 Add to
5924959249SCREW£2.21 Add to
65736573SPACER£2.70 Add to
73427342SPACER£2.42 Add to
7505575055SEAT SPRING£9.99 Add to
7657376573EXTENSION£3.28 Add to
81418141WASHER£3.84 Add to
