STEERING UNIT EFFECTIVE UNTIL SN 508517(FD220L, 507822(FD220R), from sn 303001 to sn 508517 from 2003 to 2008)

Parts list

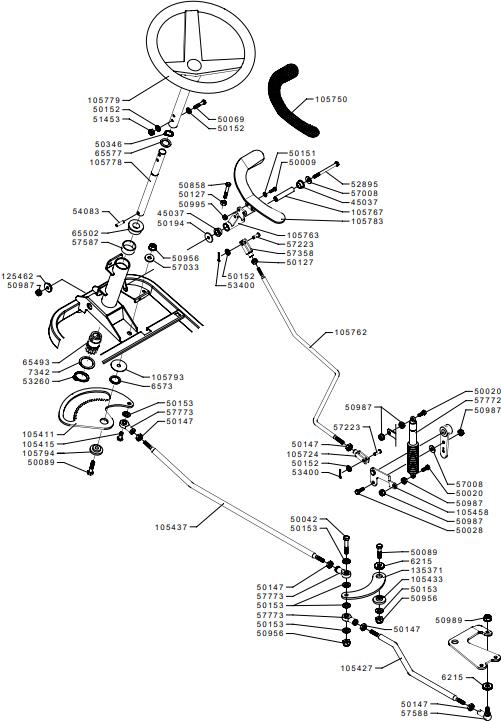

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105411105411SECTOR£34.51 Add to
105415105415SCREW£3.77 Add to
105427105427ROD£18.50 Add to
105433105433BUSHING£4.69 Add to
105437105437ROD£38.30 Add to
105458105458BRACKET£23.98 Add to
105750105750AUTOADHESIVE TAPE£5.93 Add to
105762105762ROD£40.48 Add to
105778105778STEERING COLUMN£29.93 Add to
4503745037BUSHING£4.36 Add to
5000950009SCREW£1.42 Add to
5002050020SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5004250042SCREW£1.97 Add to
5006950069SCREW£1.59 Add to
5008950089SCREW£1.85 Add to
5012750127NUT£1.36 Add to
5014750147NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5019450194WASHER£1.60 Add to
5034650346CIRCLIP£0.30 Add to
5085850858SCREW£1.71 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5289552895SCREW£1.85 Add to
5326053260CIRCLIP£2.15 Add to
5340053400SPLIT PIN£1.36 Add to
5408354083PIN£1.95 Add to
5700857008WASHER£1.35 Add to
5722357223PIN£3.31 Add to
5735857358YOKE£6.63 Add to
5758757587BUSHING£7.51 Add to
5758857588ARTICULATION£11.18 Add to
5777257772SHOCKABSORBER£74.19 Add to
5777357773CYLINDER HEAD£18.33 Add to
62156215WASHER£4.15 Add to
6549365493PINION£58.02 Add to
6550265502BUSHING£11.76 Add to
6557765577SPACER£1.07 Add to
65736573SPACER£2.70 Add to
73427342SPACER£2.42 Add to
