STEERING UNIT (from sn 363301 to sn 385500 from 2006 to 2007)

Parts list

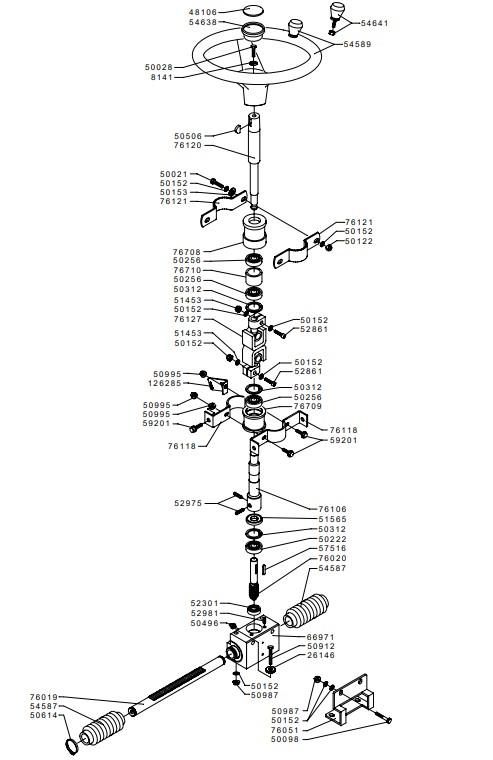

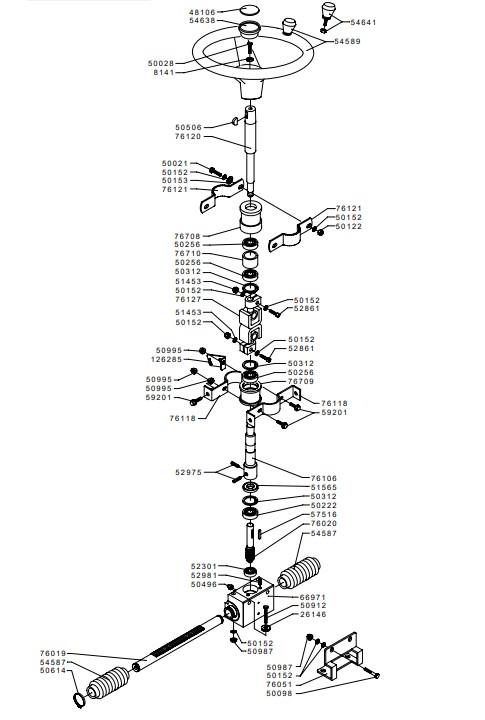

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
2614626146WASHER£3.64 Add to
4810648106STICKER£4.27 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5009850098SCREW£1.97 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5022250222BEARING£8.85 Add to
5025650256BEARING£9.83 Add to
5031250312CIRCLIP£1.71 Add to
5049650496FITTING£1.90 Add to
5050650506FEATHER KEY 5 X 7.5 UNI 6606£2.48 Add to
5061450614CLAMP£0.15 Add to
5091250912SCREW£2.13 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5156551565SEAL RING£3.38 Add to
5230152301BEARING£6.90 Add to
5286152861SCREW£1.59 Add to
5297552975ALLEN SCREW£1.56 Add to
5298152981ALLEN SCREW£1.49 Add to
5458754587RUBBER BELLOW£13.12 Add to
5458954589STEERING WHEEL£79.57 Add to
5463854638PLUG£6.40 Add to
5464154641KNOB£7.22 Add to
5751657516FEATHER KEY£1.10 Add to
5920159201SCREW£1.39 Add to
6697166971STEERING BOX£184.41 Add to
7601976019RACK£103.61 Add to
7602076020PINION£53.16 Add to
7605176051PLATE£15.56 Add to
7610676106SHAFT£81.62 Add to
7611876118BRACKET£8.86 Add to
7612076120SHAFT£104.96 Add to
7612176121BRACKET£5.52 Add to
7670876708BUSHING£19.97 Add to
7670976709BUSHING£13.53 Add to
7671076710SPACER£5.61 Add to
81418141WASHER£3.84 Add to
