STEERING UNIT (from sn 684416 to sn 702296 from 2019 to 2021)

Parts list

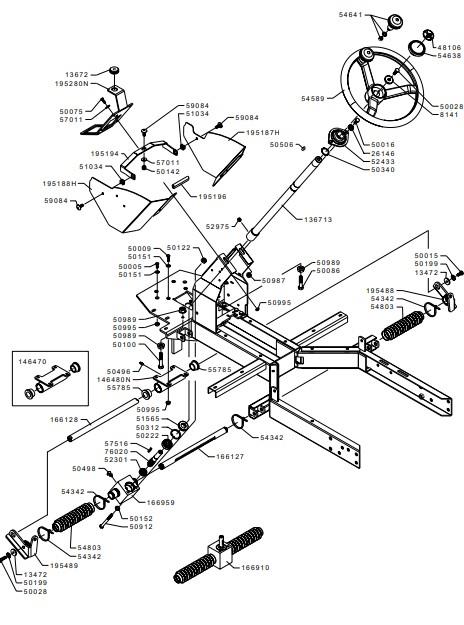

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1347213472WASHER£3.19 Add to
136713136713STEERING COLUMN£72.56 Add to
1367213672SHOCK ABSORBER£3.93 Add to
146470146470FLANGE CONNECTION£72.44 Add to
146480N146480NFLANGE CONNECTION£53.35 Add to
166127166127RACK£79.92 Add to
166128166128ROD£26.28 Add to
166910166910STEERING BOX£488.20 Add to
166959166959STEERING BOX£161.44 Add to
195187H195187HGUARD PLATE£39.39 Add to
195188H195188HGUARD PLATE£39.39 Add to
195194195194BRACKET£14.64 Add to
195280N195280NBRACKET£31.87 Add to
195488195488LEVER£20.64 Add to
195489195489LEVER£20.64 Add to
2614626146WASHER£3.64 Add to
4810648106STICKER£4.27 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5007550075SCREW£1.42 Add to
5008650086SCREW£1.86 Add to
5010050100SCREW£2.04 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5022250222BEARING£8.85 Add to
5031250312CIRCLIP£1.71 Add to
5034050340CIRCLIP£1.45 Add to
5049650496FITTING£1.90 Add to
5050650506FEATHER KEY 5 X 7.5 UNI 6606£2.48 Add to
5091250912SCREW£2.13 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5103451034CAGE-NUT£1.58 Add to
5156551565SEAL RING£3.38 Add to
5230152301BEARING£6.90 Add to
5243352433BEARING£39.65 Add to
5297552975ALLEN SCREW£1.56 Add to
5434254342CLAMP£1.89 Add to
5458954589STEERING WHEEL£79.57 Add to
5463854638PLUG£6.40 Add to
5464154641KNOB£7.22 Add to
5480354803RUBBER BELLOW£9.20 Add to
5578555785BUSHING£9.17 Add to
5701157011WASHER£1.30 Add to
5751657516FEATHER KEY£1.10 Add to
5908459084SCREW£1.69 Add to
7602076020PINION£53.16 Add to
81418141WASHER£3.84 Add to
