TILLER GEARBOX(from s/n 102801 to s/n 602415 from 1984 to 2017)

Parts list

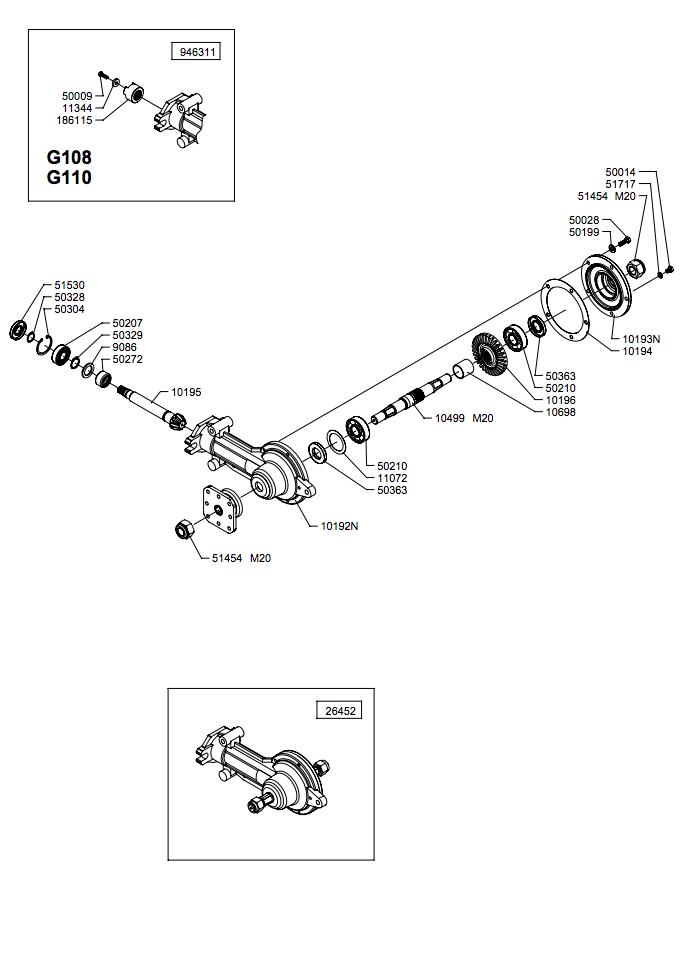

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
10192N10192NGEARBOX£249.17 Add to
10193N10193NCOVER£68.56 Add to
1019410194GASKET£3.49 Add to
1019510195PINION£101.35 Add to
1019610196RING GEAR£115.66 Add to
1069810698SPACER£5.54 Add to
1107211072SPACER£3.49 Add to
1134411344WASHER£2.95 Add to
186115186115COUPLING£44.14 Add to
2645226452ROTARY HOE CENTRAL ASSEMBLY£558.21 Add to
500076500076TOOL KIT£87.76 Add to
5000950009SCREW£1.42 Add to
5001450014SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5019950199WASHER£1.58 Add to
5020750207BEARING£8.85 Add to
5027250272ROLLER BEARING£54.89 Add to
5030450304CIRCLIP£2.09 Add to
5032850328CIRCLIP£1.44 Add to
5032950329CIRCLIP£1.68 Add to
5036350363SEAL RING£4.46 Add to
5145451454NUT£4.03 Add to
5153051530SEAL RING£5.33 Add to
5171751717WASHER£2.43 Add to
5243552435BEARING£16.28 Add to
90869086SPACER£3.69 Add to
