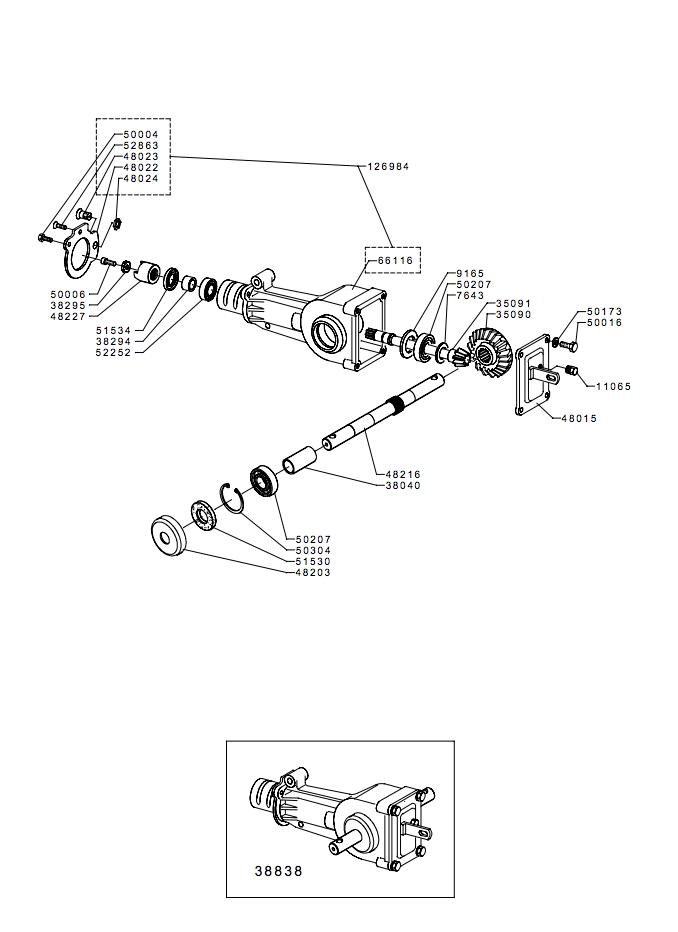

TILLER GEARBOX(from sn 305500 from 2005)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1106511065MALE HEXAGONAL PLUG£5.09 Add to
126984126984GEARBOX£221.63 Add to
3509035090RING GEAR£61.35 Add to
3509135091ROTARY HOE PINION£74.20 Add to
3804038040SPACER£6.83 Add to
3829438294RING£19.45 Add to
3829538295WASHER£3.43 Add to
3883838838ROTARY HOE CENTRAL ASSEMBLY£457.87 Add to
4801548015COVER£23.55 Add to
4802248022FLANGE£15.31 Add to
4802348023BUSHING£17.39 Add to
4802448024NUT£6.20 Add to
4820348203COVER£11.55 Add to
4821648216SHAFT£55.19 Add to
4822748227COUPLING£30.34 Add to
5000450004SCREW£1.36 Add to
5000650006SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5017350173WASHER£1.34 Add to
5020750207BEARING£8.85 Add to
5030450304CIRCLIP£2.09 Add to
5153051530SEAL RING£5.33 Add to
5153451534SEAL RING£6.16 Add to
5225252252BEARING£15.66 Add to
5286352863SCREW£1.42 Add to
76437643SPACER£2.71 Add to
91659165SPACER£3.41 Add to
