TIROL CENTRAL CUTTER BAR 115 cm(from s/n 102801 from 1984)

Parts list

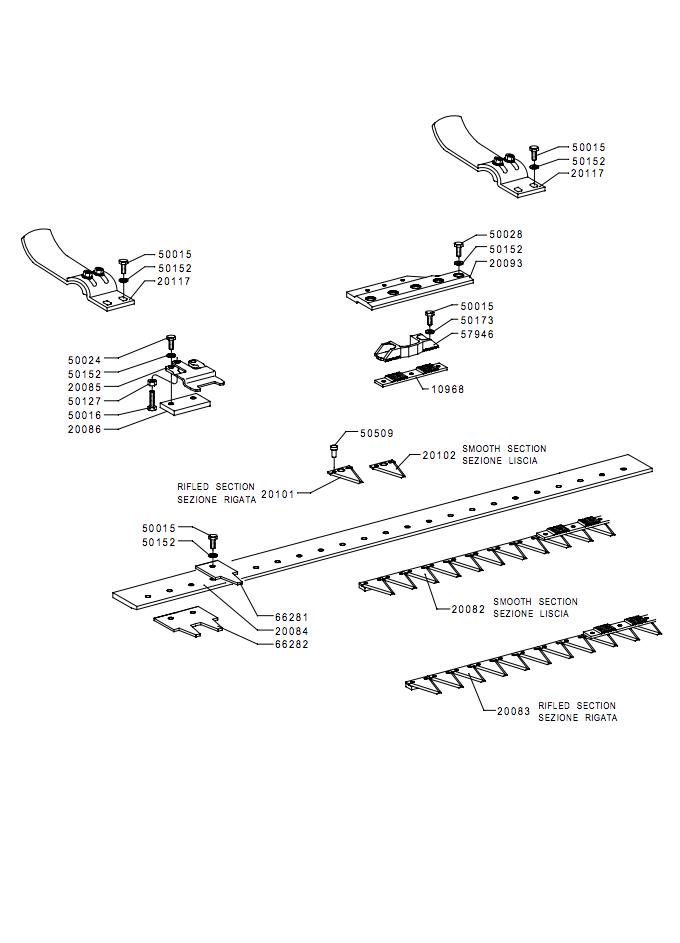

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1096810968SUPPORT£11.84 Add to
2008420084SICKLE BAR£197.23 Add to
2008520085HOLD-DOWN CLIP£19.90 Add to
2008620086STRICKER PLATE£15.22 Add to
2009320093PLATE£47.94 Add to
2010120101SECTION£5.25 Add to
2011720117SLIDE£17.72 Add to
2013420134CUTTING BLADE£94.75 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5012750127NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5050950509RIVET£1.37 Add to
5794657946CONNECTION£21.50 Add to
6628166281TOOTH£18.38 Add to
6628266282TOOTH£25.17 Add to
