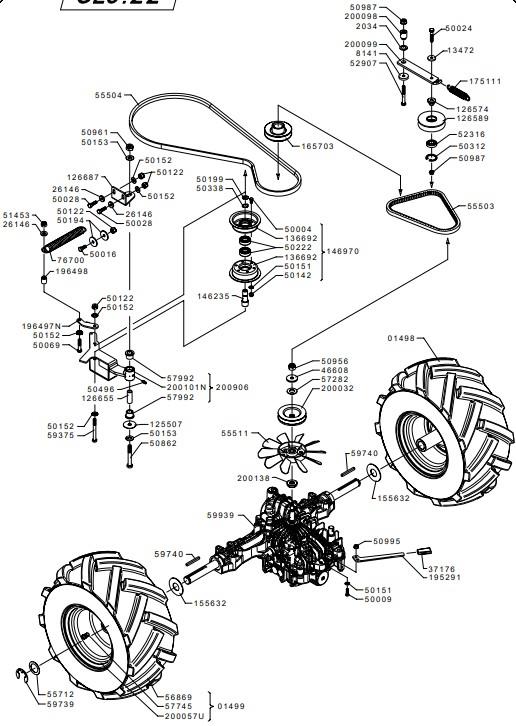

TRANSMISSION BELT AND REAR AXLE (from sn 602123 to sn 611739 from 2016 to 2016)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0149801498RUBBER WHEEL£234.50 Add to
0149901499RUBBER WHEEL£234.50 Add to
125507125507SPACER£2.22 Add to
126574126574BUSHING£7.22 Add to
126655126655SPACER£12.06 Add to
126687126687BRACKET£9.17 Add to
1347213472WASHER£3.19 Add to
146235146235PIN£8.34 Add to
146970146970GUIDE PULLEY£33.16 Add to
155632155632WASHER£4.44 Add to
155902155902GUIDE PULLEY£33.43 Add to
165703165703ENGINE PULLEY CLS7 EC£49.35 Add to
175111175111SPRING£12.86 Add to
195291195291LEVER£5.38 Add to
196497N196497NBRACKET£27.53 Add to
196498196498BUSHING£8.13 Add to
200032200032PULLEY£85.24 Add to
200057U200057URIM£149.56 Add to
200098200098BUSHING£8.97 Add to
200099200099BRACKET£11.38 Add to
200138200138SPACER£7.50 Add to
20342034SPACER£3.02 Add to
2614626146WASHER£3.64 Add to
3717637176KNOB£3.79 Add to
4660846608WASHER£3.44 Add to
5000450004SCREW£1.36 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5006950069SCREW£1.59 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5019450194WASHER£1.60 Add to
5019950199WASHER£1.58 Add to
5022250222BEARING£8.85 Add to
5031250312CIRCLIP£1.71 Add to
5033850338CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5086250862SCREW£2.58 Add to
5095650956NUT£1.47 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5231652316BEARING£8.54 Add to
5290752907SCREW£1.76 Add to
5550355503BELT£40.67 Add to
5550455504BELT£91.52 Add to
5551155511BLOWER£19.96 Add to
5571255712SPACER£1.12 Add to
5686956869TYRE£158.36 Add to
5728257282BELLEVILLE SPRING£2.27 Add to
5774557745VALVE£3.73 Add to
5799257992BUSHING£4.56 Add to
5937559375SCREW£2.46 Add to
5973959739RING SNAP£1.18 Add to
5974059740FEATHER KEY£3.12 Add to
5993959939HYDROST.TRANSMISSION K66AR£2,375.26 Add to
7670076700SPRING£7.90 Add to
81418141WASHER£3.84 Add to
