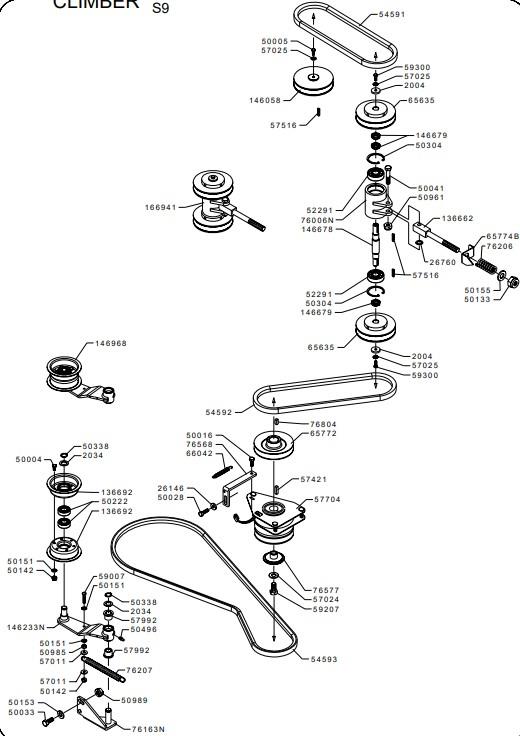

TRANSMISSION BELTS AND CLUTCH (from sn 363301 from 2006)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136662136662PIN£30.42 Add to
136692136692GUIDE PULLEY£12.08 Add to
146058146058HYDR ENGINE PULLEY CLS9£64.23 Add to
146233N146233NSUPPORT£27.01 Add to
146678146678SHAFT£50.07 Add to
146679146679SPACER£2.71 Add to
146968146968GUIDE PULLEY£98.49 Add to
166941166941BACK GEAR£368.05 Add to
20042004WASHER£3.69 Add to
20342034SPACER£3.02 Add to
2614626146WASHER£3.64 Add to
2676026760SPACER£2.87 Add to
275910275910SUPPORT£40.55 Add to
5000450004SCREW£1.36 Add to
5000550005SHAFT -INPUT£1.53 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5004150041SCREW£1.81 Add to
5013350133NUT£2.21 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015350153WASHER£1.34 Add to
5015550155WASHER£1.42 Add to
5022250222BEARING£8.85 Add to
5030450304CIRCLIP£2.09 Add to
5033850338CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5098550985NUT£1.30 Add to
5098950989NUT£1.59 Add to
5229152291BEARING£17.96 Add to
5459154591BELT£39.11 Add to
5459254592BELT£39.63 Add to
5459354593BELT£58.88 Add to
5701157011WASHER£1.30 Add to
5702457024WASHER£1.49 Add to
5702557025WASHER£1.34 Add to
5742157421FEATHER KEY£4.51 Add to
5751657516FEATHER KEY£1.10 Add to
5770457704CLUTCH£436.77 Add to
5799257992BUSHING£4.56 Add to
5900759007SCREW£1.40 Add to
5920759207SCREW£3.97 Add to
5930059300SCREW£1.49 Add to
6577265772ENGINE PULLEY 0113 CLS9£57.33 Add to
65774B65774BBELT TENSION INDICATOR£7.48 Add to
6604266042SPRING£8.52 Add to
76006N76006NBODY£57.95 Add to
7620676206SPRING BELT STRECHER£10.43 Add to
7620776207SPRING£11.13 Add to
7656876568CLUTCH LOCK PLATE£10.31 Add to
7657776577WASHER£19.69 Add to
7680476804FEATHER KEY£2.71 Add to
